MAXS67-600 G2 2500 HF 840 TW BN20 FR/PC 220-254V

MAXS67-600 G2 2500 HF 840 TW BN20 FR/PC 220-254V

Varenummer:

201145

  • Produsentnummer: MAX102844

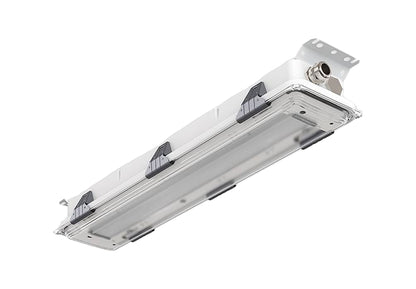

The MAX G2 is a Zone 1-2 and Zone 21-22 - LED light fixtures. It is applicable for a wide range of different Ex areas. They are designed to meet Energy and Marine requirements and to save energy and maintenance cost due to the long lifetime.

Specifications

Techinal Data:

  • Minimum ambient temperature (°C): -40
  • Maximum ambient temperature (°C): 55
  • IP Classification: 66/67

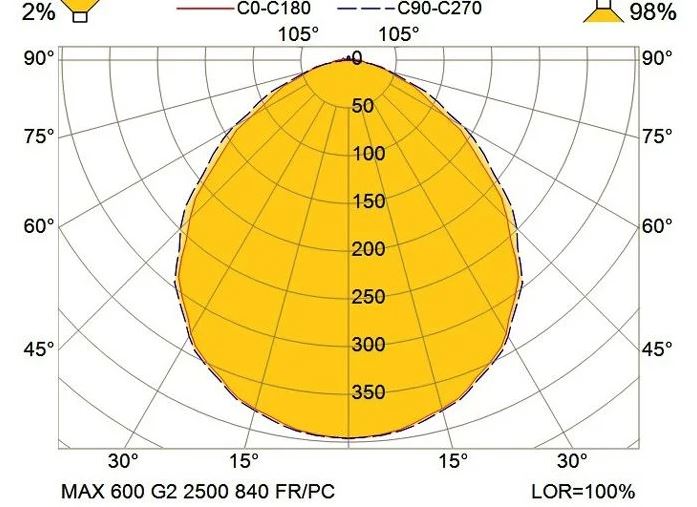

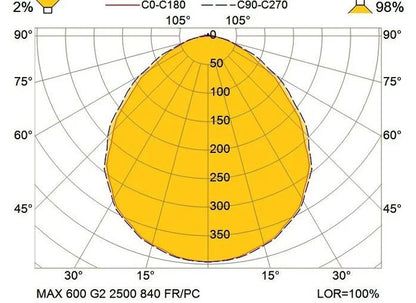

 Light Technical Data:

  • Light source: LED
  • Lumen out (lm): 2,803
  • Lumen per Watt (lm/W): 133
  • Lamp colour temp (K): 4000
  • CRI Colour vendering index: > 80

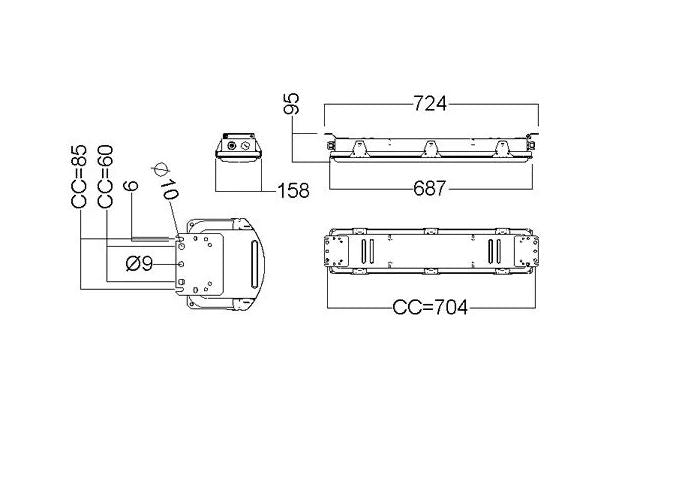

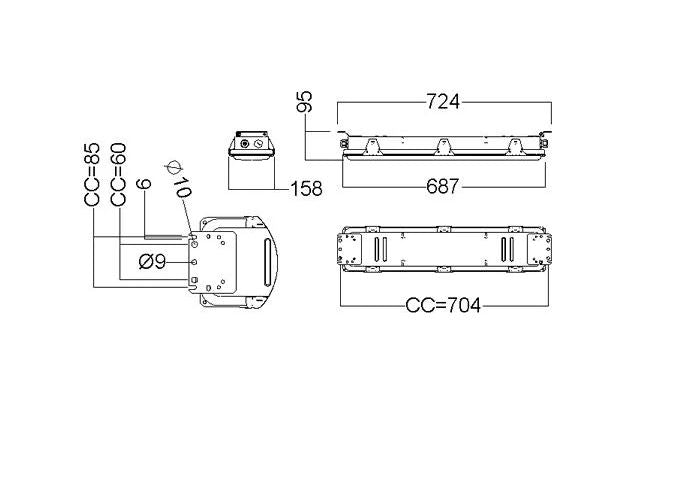

 Dimensions:

  • Lenght (mm): 724
  • Width (mm): 158
  • Height (mm): 95
  • Net weight (kg): 4,64

 Mounting:

  • Ceiling Surface
  • Wall surface
