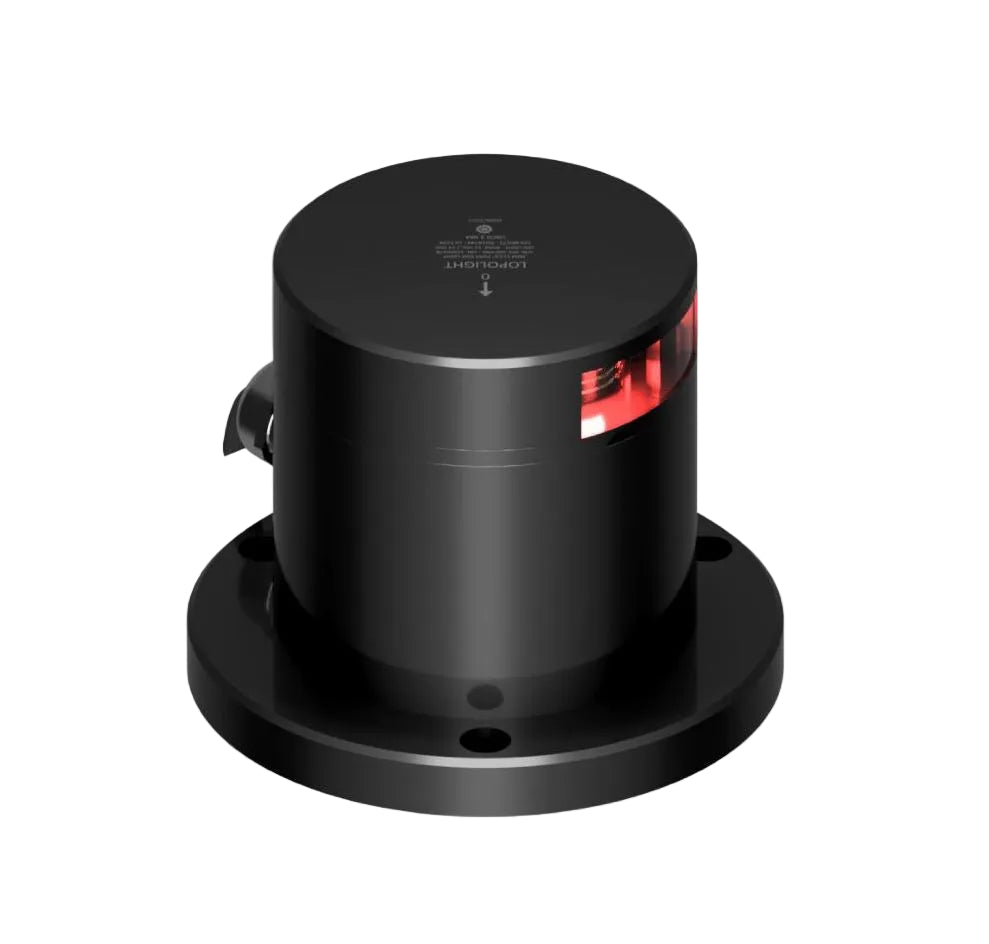

This LED Navigation light, is our Professional Series for commercial vessels. The PRO-Serie have the best technology available and impressive robustness, made with a thicker and harder anodizing. All the certification approvals needed for this type o.
Horizontally mounted on POM base (IP68) Cable direction side incl. HDPE base plate Quality cable glands 7-13mm (9/32"- 1/2") cable diameter

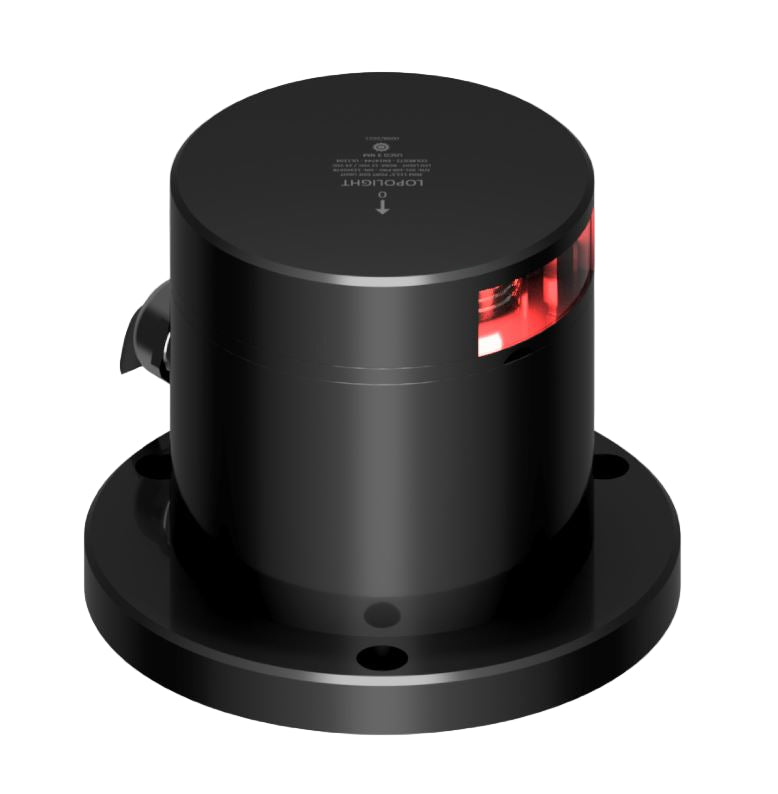

301-009-PRO
Specifications
Approved to: COLREG72,EN14744,IEC 60945,IACS
E10,USCG,ABS,M.E.D.,DNV,LR
Operating temperature (°C): -25 to 55
Operating Voltage: 10-32VDC
Power draw (W): 1,2
Current consumption (mA @ 12VDC): 90
Current consumption (mA @ 24VDC): 50
Weight (Kg): 1,04
Light Color: Red
Intensity: >5,4cd
Visibility: 2nm
Mounting: Horizontal
Vessel size: 12-20M, 20-50M
Included In Package: 1 Navigation light, 2 mounting screws (M6 * 8 mm), Installation guide
Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
