Specifications
Approved to: COLREG72,EN14744,IEC 60945,IACS
E10,USCG,ABS,M.E.D.,DNV,LR
Operating temperature (°C): -60 to 55
Operating Voltage: 20-32VDC
Power draw (W): 1,3
Current consumption (mA @ 12VDC): 110
Current consumption (mA @ 24VDC): 50
Weight (Kg): 1,4
Light Color: White
Intensity: >5,4cd
Visibility: 2nm

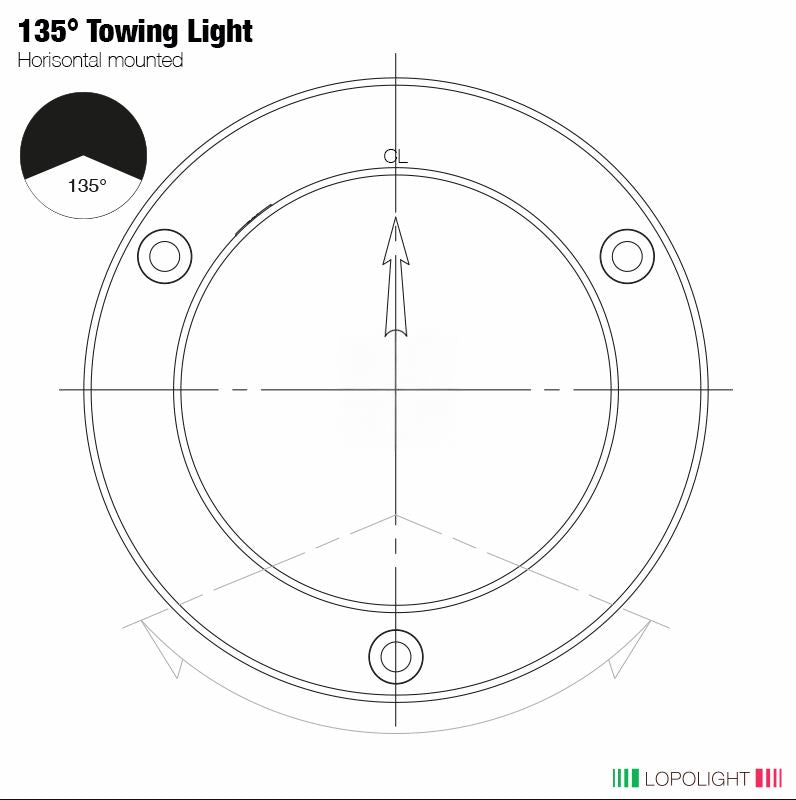

Mounting: Horizontal
Vessel size: Under 12M, 12-20M, 20-50M
Included In Package: 1 Navigation light, 2 mounting screws (M6 * 8 mm), Installation guide
Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
IP rating: IP68
Connection: Plug connector
Min. feed wire gauge: 1.5mm2 AWG18
