BLX C BL 250W24VDCD SB8OBH 5-7K 2CBABK

BLX C BL 250W24VDCD SB8OBH 5-7K 2CBABK

Item number:

201283

  • Manufacturer number: LNL0333-1

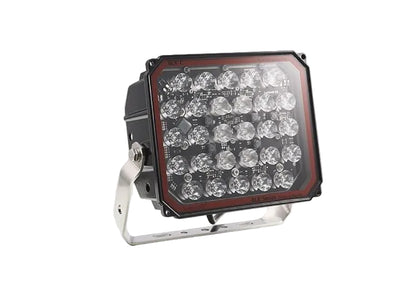

BLX™ C LED BOWLIGHT is designed to improve the ability to see during navigation and maneuvering at night. By combining the proven technology of the BLX™ Series with practical testing of the optical features, the end result is a powerful bowlight that will increase safety and endure in very harsh environments.

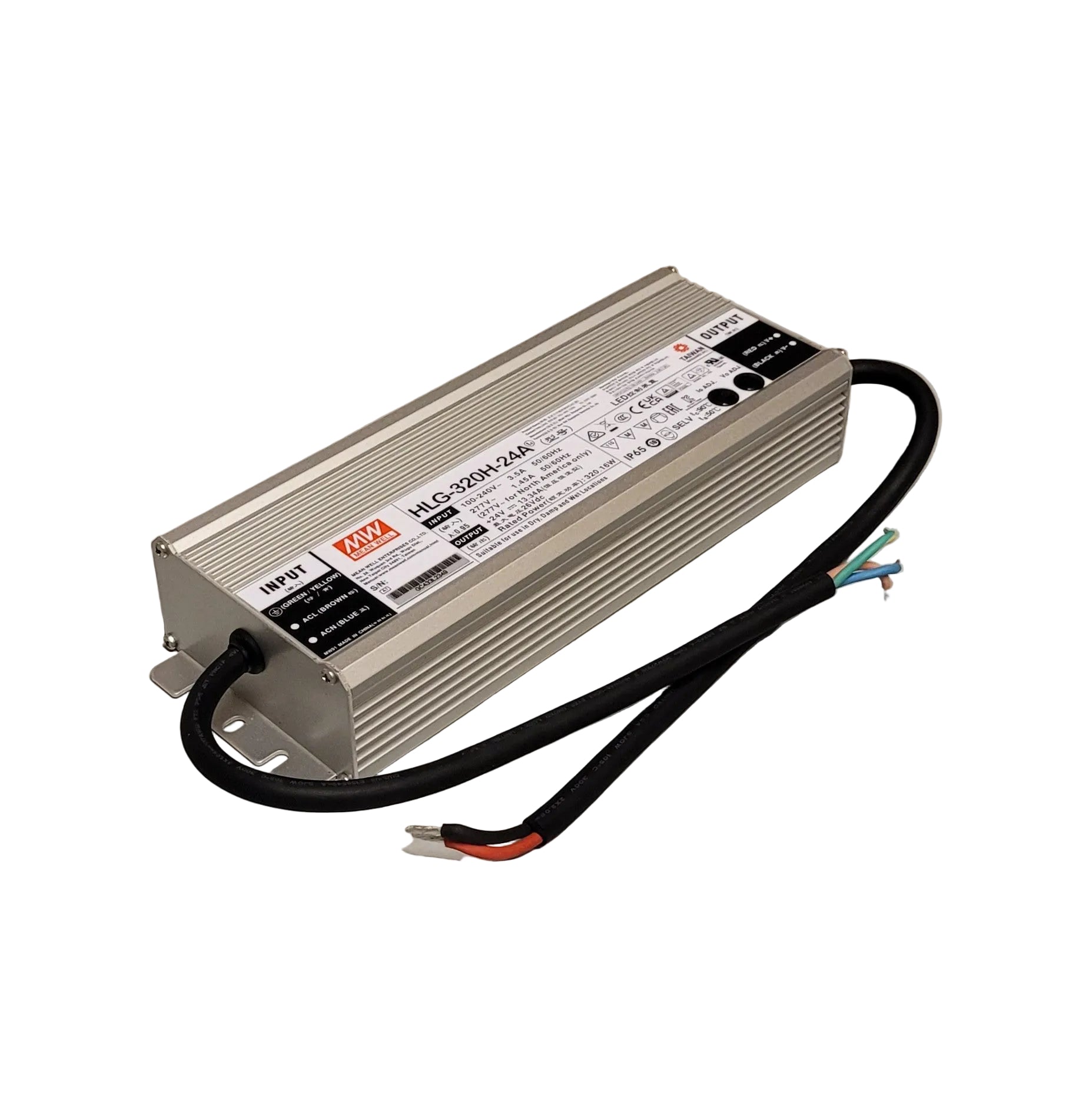

Panel and power supply are sold separately

LNL0333-1

Specifications

Techinal Data:

  • Minimum ambient temperature (°C): -40
  • Maximum ambient temperature (°C): 55
  • IP Classification: 66/67

Light Technical Data:

  • Light source: LED
  • Lumen out (lm): 21,010
  • Lumen per Watt (lm/W): 84
  • Lamp colour temp (K): 5000
  • CRI Colour vendering index: >70
  • Candela output (cd): 278,000
  • Watt (W): 250

Optic:

  • Output angle (°): 8
  • Optic: SB – Spot beam

Dimensions:

  • Lenght (mm): 210
  • Width (mm): 280
  • Height (mm): 160
  • Net weight (kg): 5,7
