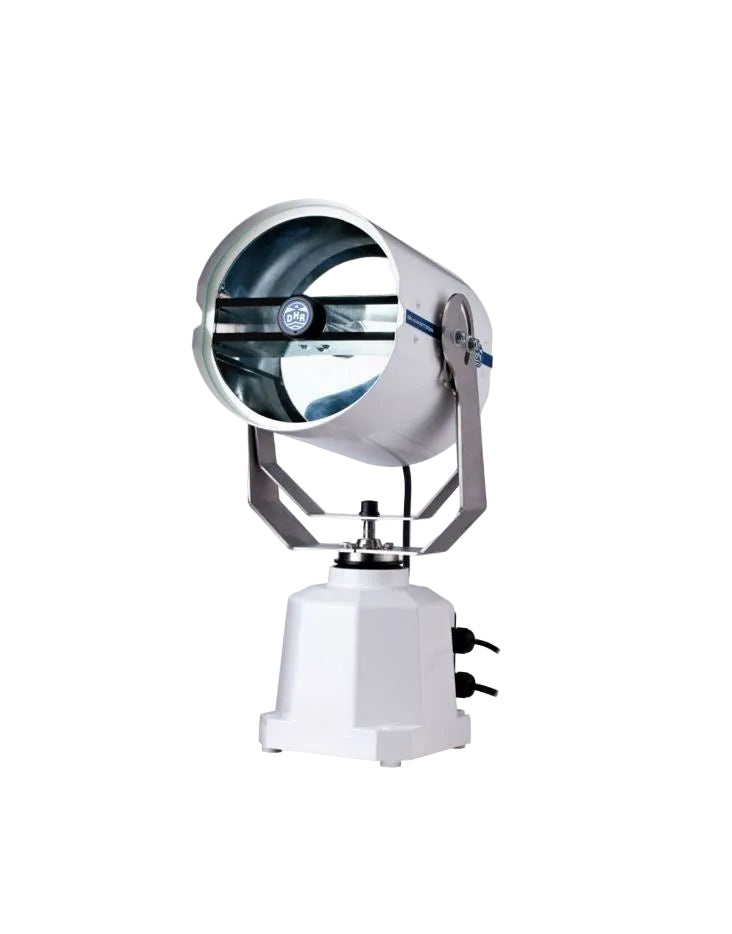

DHR230RCL LED 18-32V 65W
DHR230RCL LED 18-32V 65W
Item number:
SKU:201291
- Manufacturer number:
Couldn't load pickup availability
The 230RCL-Series LED searchlights is a great addition to the DHR LED family. it's a perfect solution for tugs, workboats and inland vessels with its compact design. The searchlight is equipped with a silver plated mirror which provided an optimal beam. the RCL series searchlights are operated by a control panel, usually mounted in the wheelhouse.
230RCL11
Specifications
Specifications
Technical Data:
- Minimum operating temperature (°C): -25
- Maximum operating temperature (°C): 40
- Pan rotation: 340°
- Tilt elevation control: +30° / - 60°
- IP Classification: 66
Light Technical Data:
- Light source: LED
- Lamp life (hrs): 50000
- Colour Temp options (k): 5000
- Range at 1 lux (m): 740
- Lumens (lm): 7000
- Number of lamps: 1
- Light source included: Yes
Dimensions:
- Height (mm): 617
- Width (mm): 331
- Net weight (kg): 16
