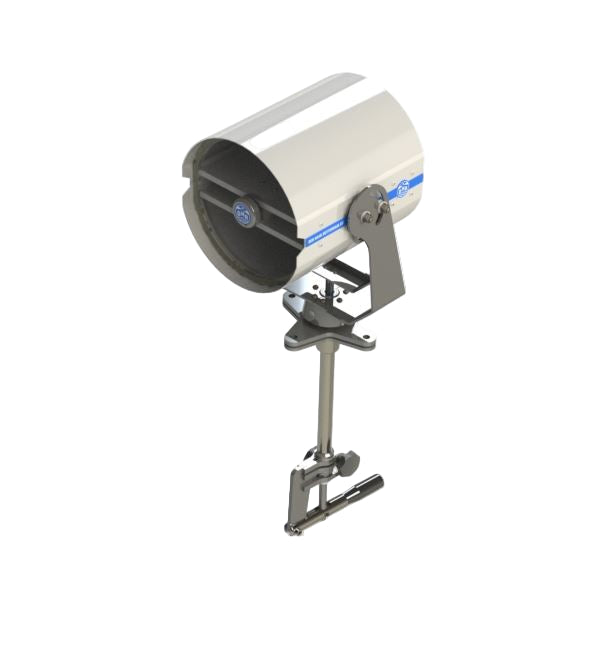

DHR230CSL LED 75W 115/230 VAC MANUAL BRIDGE OPERATED

DHR230CSL LED 75W 115/230 VAC MANUAL BRIDGE OPERATED

Item number:

201195

  • Manufacturer number:

The 230CSL-Series LED searchlights is a great addition to the DHR LED family. it's a perfect solution for tugs, workboats and inland vessels with its compact design. The searchlight is equipped with a silver plated mirror which provided an optimal beam. the CSL series searchlights are hand operated, usually mounted in the wheelhouse.

 Specifications

Technical Data:

  • Minimum operating temperature (°C): -25
  • Maximum operating temperature (°C): 40
  • Pan rotation: 360°
  • Tilt elevation control: +30° / - 60°
  • IP Classification: 66

Light Technical Data:

  • Light source: LED
  • Lamp life (hrs): 50000
  • Colour Temp options (k): 5000
  • Range at 1 lux (m): 775
  • Lumens (lm): 8,767
  • Number of lamps: 1
  • Light source included: Yes

Dimensions:

  • Height (mm): 434
  • Width (mm): 306
  • Net weight (kg): 6
