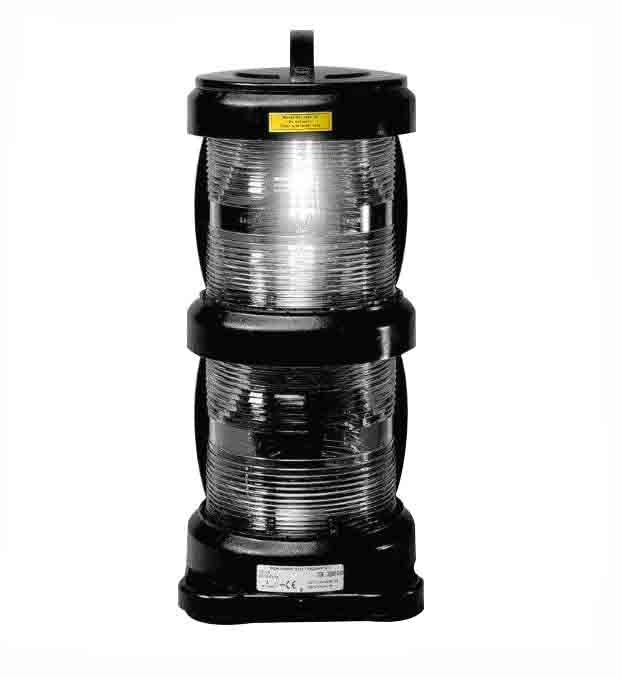

DHR70N DUPLEX MASTHEAD LIGHT 6NM

Specifications

Applications: Sea-going vessels over 20m in
length. Nato codification

Materials: Matt black polyamide and polycarbonate, reinforced with fibreglass. Corrosion free, seawater
resistant and non-magnetic. Polycarbonate Fresnel lens, shock resistant and interchangeable.

Wiring: 1,5 meter neoprene cable H07 RN-F
2x1,5. PG13 Cable gland

Mounting: Base

Weight: Sector lights and 180° screened lights: 4.1kg. All-round lights: 3.6kg

Approval: MED 2014/90/EU

Visibility: 3 to 6 N.M.

Min. visibility: 6NM

Sector: Masthead

Protection class: IP56

Downloads:

Technical manual
