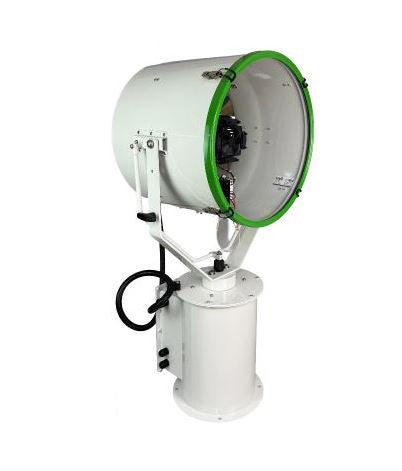

L480RC 230V 200W LED RF REMOTE CONTROL

L480RC 230V 200W LED RF REMOTE CONTROL

Item number:

SKU:201423

  • Manufacturer number:

The Francis LED searchlight range continues to develop and offers an Efficiently and Environmentally Friendly alternative to traditional lamp sources. Using the highest grade of LED’s, this range offers a high power output with low power consumption. In addition, the LED offers a lamp life of 33,000 hours

The 200w LED gives illumination characteristics similar to that of a 2000w halogen lamp. This model offers a remote focus adjustment of the beam from 7° spot to 20° flood.

The Francis bus (FBUS) is a custom communication protocol based on RS485 two-wire bi-directional communication hardware.

A7329

Specifications

Specifications

Technical Data:

  • Operating temperature (°C): -20 to +50
  • Pan rotation: 365°
  • Tilt elevation control: +25° -20°
  • IP Classification: 66

Light Technical Data:

  • Light source: Laser LED
  • Lamp life (hrs): 33000
  • Colour Temp options (k): 6500
  • Range at 1 lux (m): 1652
  • Lumens: 32,000
  • Number of lamps: 1
  • Light source included: Yes

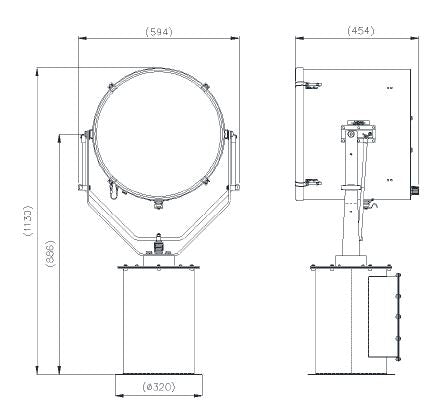

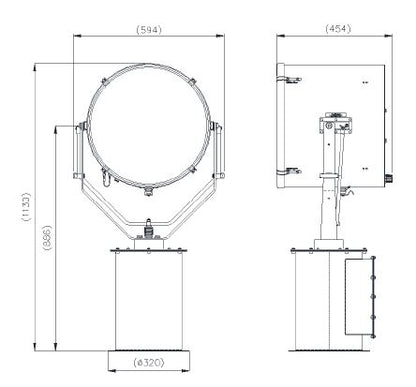

Dimensions:

  • Lenght (mm): 454
  • Width (mm): 594
  • Height (mm): 1130
  • Net weight (kg): 40
Downloads
