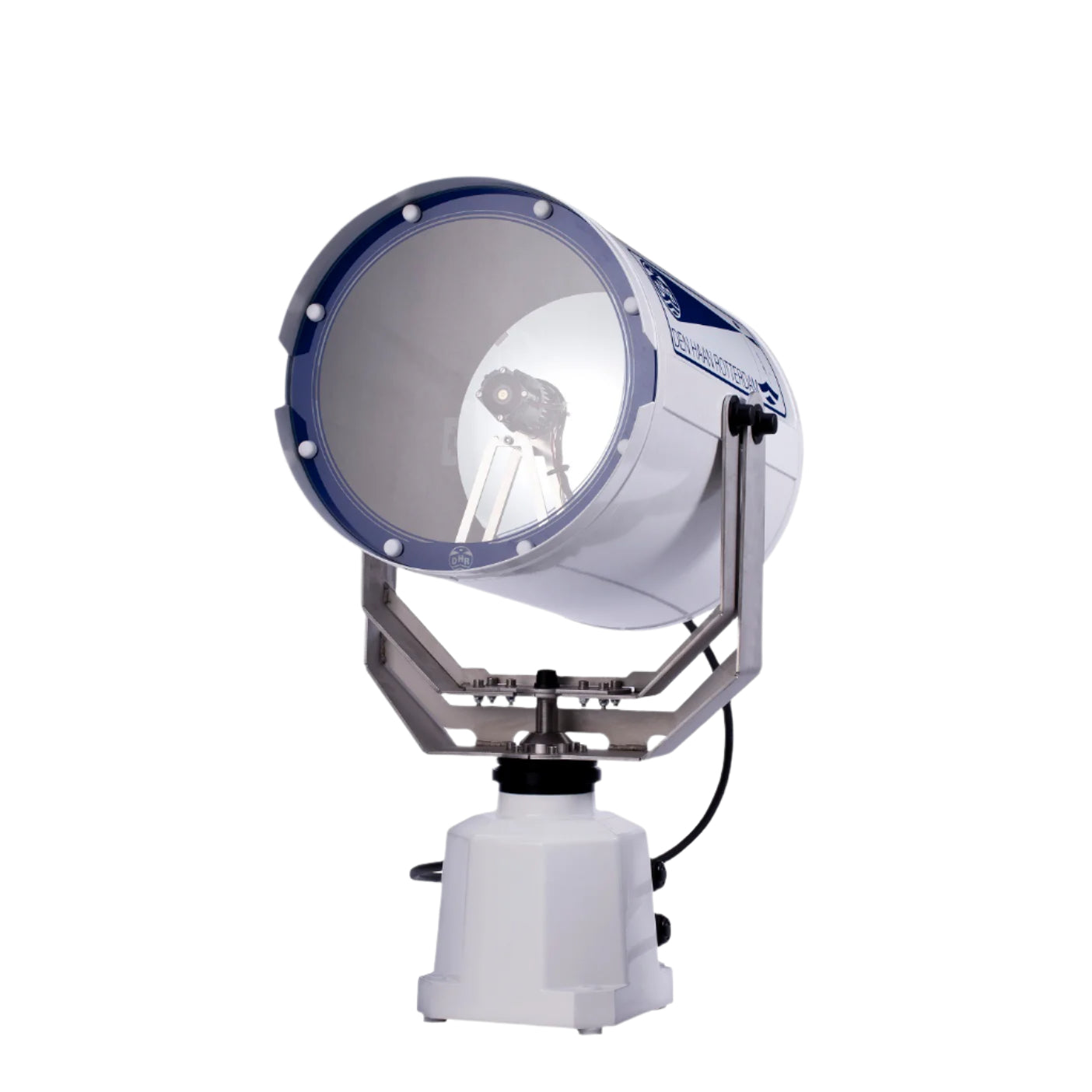

DHR320RCP22 LED 115/230VAC 200W

DHR320RCP22 LED 115/230VAC 200W

Item number:

201016

  • Manufacturer number: 320RCP22

The 320RCP are a perfect solution for tugs, workboats, high speed vessels and pilot boats. A big advancement, which uses a new revolutionary LED-chip having the highest lumen output per square mm2. It boosts up to 20.000 lumens from an area less than a square centimetre.

Combine this with an optical system consisting of a glass lens and a silver-mirror reflector, it creates the highest performing LED searchlight to date.

320RCP22

Specifications

Specifications

Technical Data:

  • Minimum operating temperature (°C): -25
  • Maximum operating temperature (°C): 40
  • Pan rotation: 340°
  • Tilt elevation control: +25° / - 40°
  • IP Classification: 66

Light Technical Data:

  • Light source: LED
  • Lamp life (hrs): 10000
  • Colour Temp options (k): 5700
  • Range at 1 lux (m): 1700
  • Lumens (lm): 18.000
  • Number of lamps: 1
  • Light source included: Yes

Dimensions:

  • Height (mm): 820
  • Width (mm): 377
  • Net weight (kg): 16,6
Downloads
Technical Manual PDF
