MAXS67-600 G2 2500 HF 840 TW BN20 FR/PC 220-254V

MAXS67-600 G2 2500 HF 840 TW BN20 FR/PC 220-254V

Item number:

201145

  • Manufacturer number: MAX102844

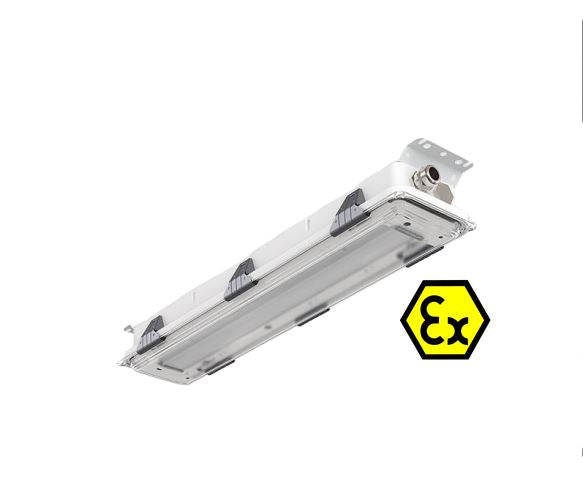

The MAX G2 is a Zone 1-2 and Zone 21-22 - LED light fixtures. It is applicable for a wide range of different Ex areas. They are designed to meet Energy and Marine requirements and to save energy and maintenance cost due to the long lifetime.

MAX102844

Specifications

Techinal Data:

  • Minimum ambient temperature (°C): -40
  • Maximum ambient temperature (°C): 55
  • IP Classification: 66/67

 Light Technical Data:

  • Light source: LED
  • Lumen out (lm): 2,803
  • Lumen per Watt (lm/W): 133
  • Lamp colour temp (K): 4000
  • CRI Colour vendering index: > 80

 Dimensions:

  • Lenght (mm): 724
  • Width (mm): 158
  • Height (mm): 95
  • Net weight (kg): 4,64

 Mounting:

  • Ceiling Surface
  • Wall surface
