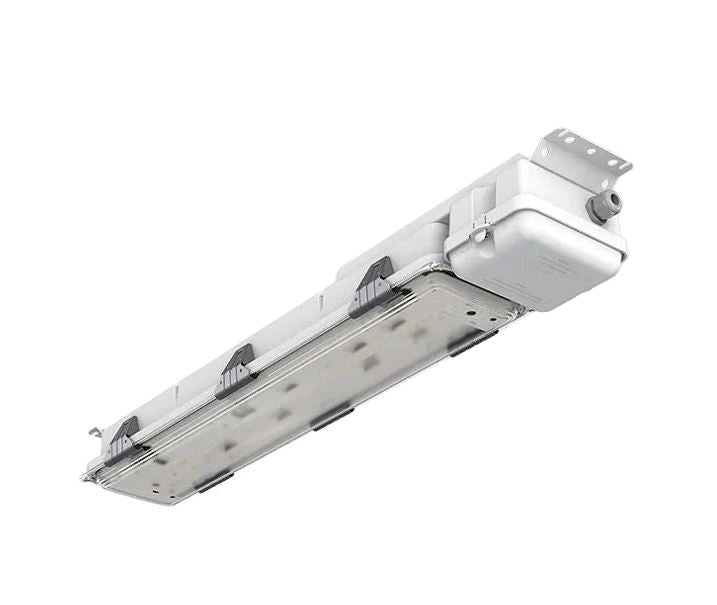

MIRS67-600 (M) G2 2500 HF EB3/S 840 TW M20 FR/PC

MIRS67-600 (M) G2 2500 HF EB3/S 840 TW M20 FR/PC

Item number:

201376

  • Manufacturer number:

EB means that this item has External Battery. Battery included

E3/S or EB3/S means that this item has a built-in emergency light for up to 3 hours duration. EB/S - stands for External Battery and Standard Emergency. The number 3 indicates the emergency time in hours. It is supplied with a standard emergency controller that needs manual testing according to European emergency light standards.

Specifications

Specifications

Techinal Data:

  • Minimum ambient temperature (°C): -20
  • Maximum ambient temperature (°C): 45
  • IP Classification: 66/67

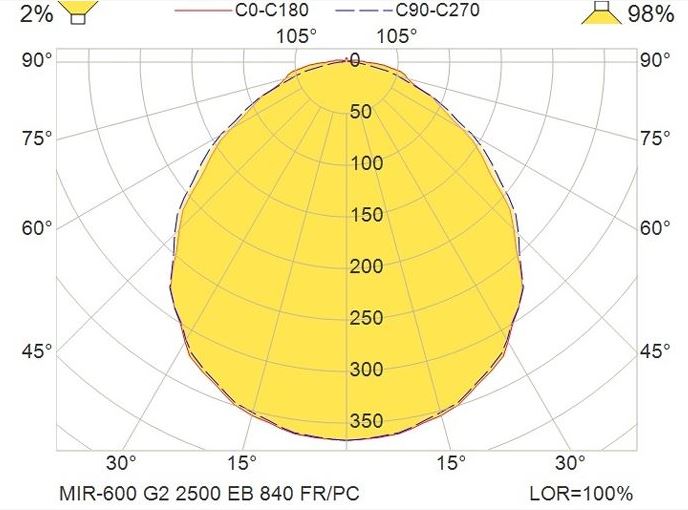

Light Technical Data:

  • Light source: LED
  • Lumen out (lm): 2.678
  • Number of lamps: 1
  • Lumen per Watt (lm/W): 149
  • Lamp colour temp (K): 4000
  • CRI Colour vendering index: 80

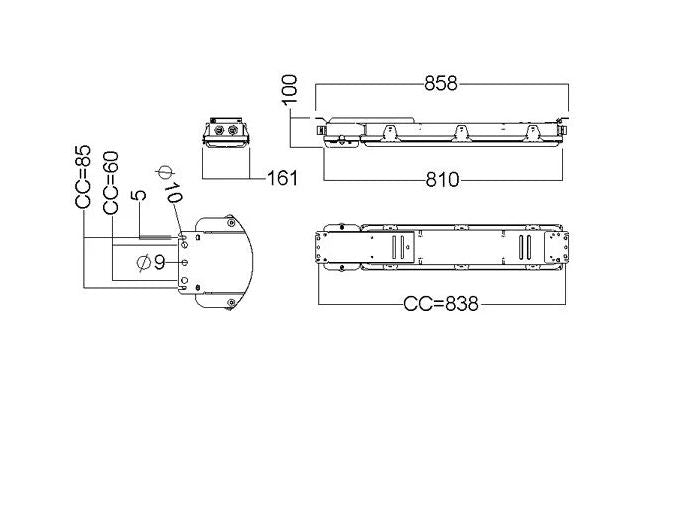

Dimensions:

  • Lenght (mm): 858
  • Width (mm): 161
  • Height (mm): 100
  • Net weight (kg): 4,9

Mounting :

  • Ceiling Surface, wall surface
