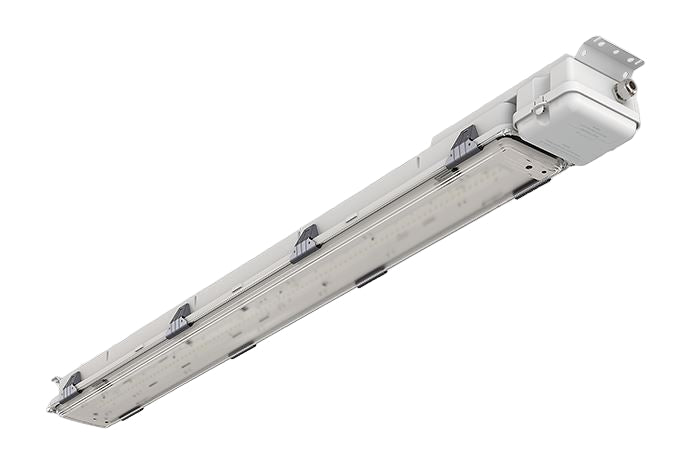

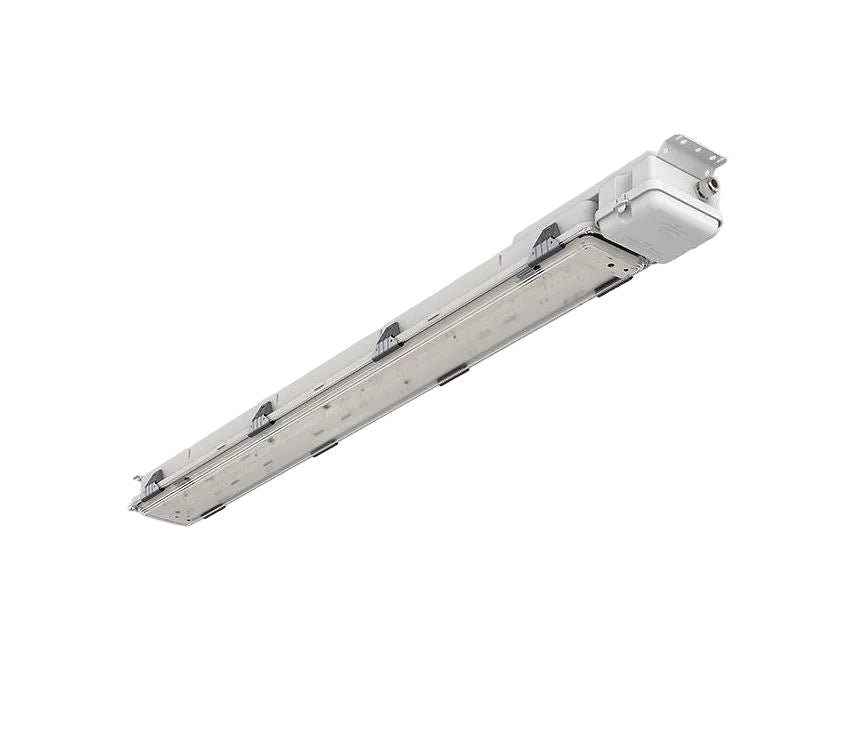

MIXS67-1200 G2 5000 HF EB3/ST 840 TW BN25 FR/PC

MIXS67-1200 G2 5000 HF EB3/ST 840 TW BN25 FR/PC

Item number:

201140

  • Manufacturer number: MIX102959

E3E3/ST and EB3/ST means that this item has a built-in emergency light for up to 3 hours duration. It tests itself according to European emergency light standards. Indicator LEDs on the product communicate the test results.

MIX102959

Specifications

Specifications

Techinal Data:

  • Minimum ambient temperature (°C): -25
  • Maximum ambient temperature (°C): 50
  • IP Classification: 66/67

Light Technical Data:

  • Light source: LED
  • Lumen out (lm): 5,373
  • Lumen per Watt (lm/W): 149
  • Lamp colour temp (K): 4000
  • CRI Colour vendering index: >80

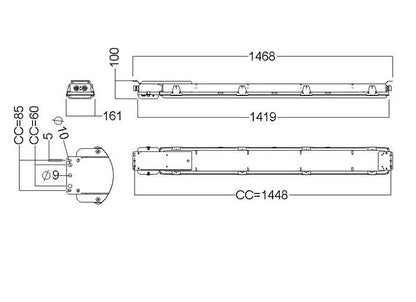

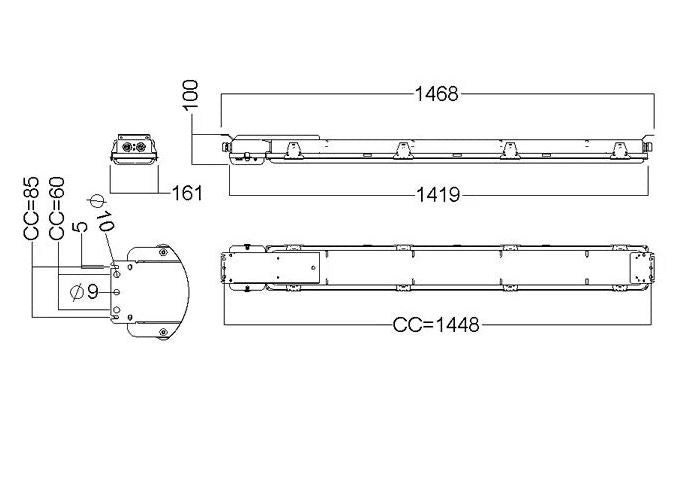

Dimensions:

  • Lenght (mm): 1,468
  • Width (mm): 161
  • Height (mm): 100

Mounting :

  • Ceiling surface
  • Wall surface
