NAV LIGHT 2NM, 112,5° GREEN STARBOARD, BLACK ANODIZED

NAV LIGHT 2NM, 112,5° GREEN STARBOARD, BLACK ANODIZED

Item number:

201220

  • Manufacturer number: 301-008-PRO

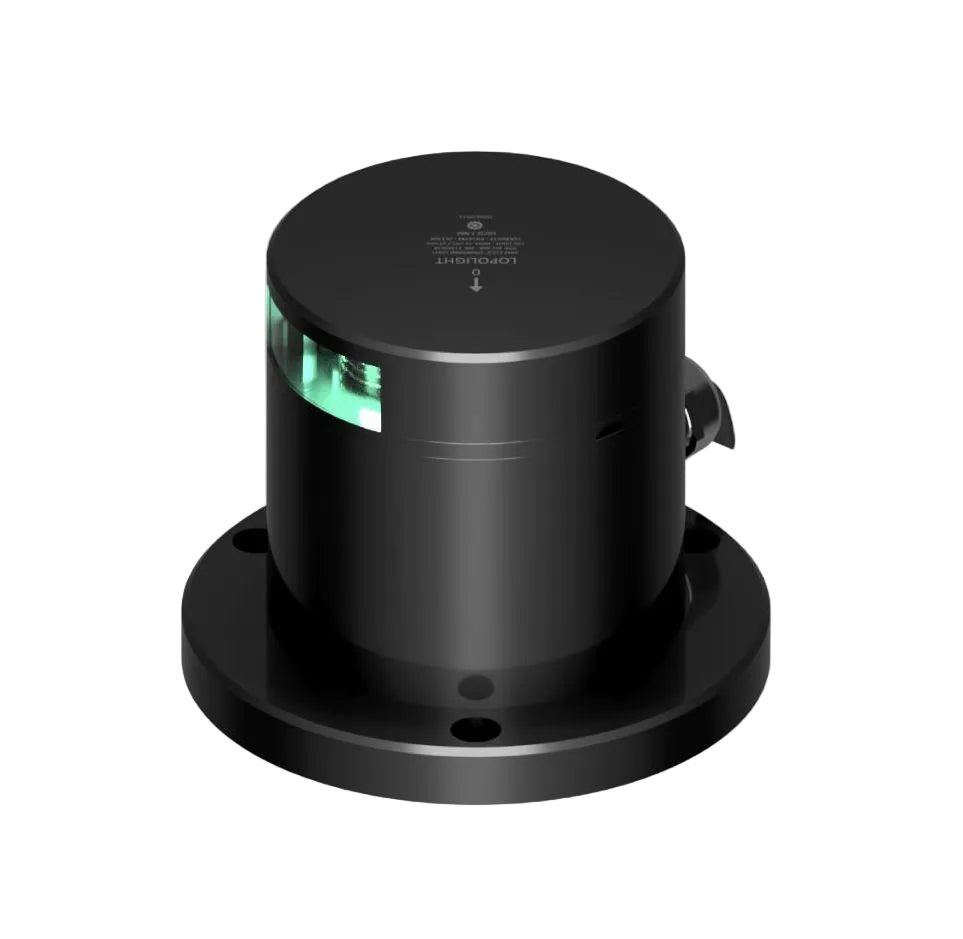

This LED Navigation light, is our Professional Series for commercial vessels. The PRO-Serie have the best technology available and impressive robustness, made with a thicker and harder anodizing.

  • Horizontally mounted on POM base (IP68)
    Cable direction side
    incl. HDPE base plate
    Quality cable glands
    7-13mm (9/32"- 1/2") cable diameter

301-008-PRO

Specifications

Specifications

Approved to: COLREG72, EN14744, IEC 60945, IACS, E10
USCG, ABS, M.E.D., DNV, LR

Operating temperature: -25°C to 55°C

Operating Voltage: 10-32VDC

Power draw (W): 1,4

Current consumption (mA @ 12VDC): 110

Current consumption (mA @ 24VDC): 60

Weight (Kg): 1

Light Color: Green

Intensity: >5,4cd

Visibility: 2NM

Mounting: Horizontal

Vessel size: 12-20m, 20-50m

Included In Package: 1 Navigation light, 2 mounting screws (M6 * 8 mm), Installation guide.

Materials: Black hard coatanodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane.

IP rating: IP68

Connection: Plug connector

Min. feed wire gauge: 0.5mm2 AWG22
