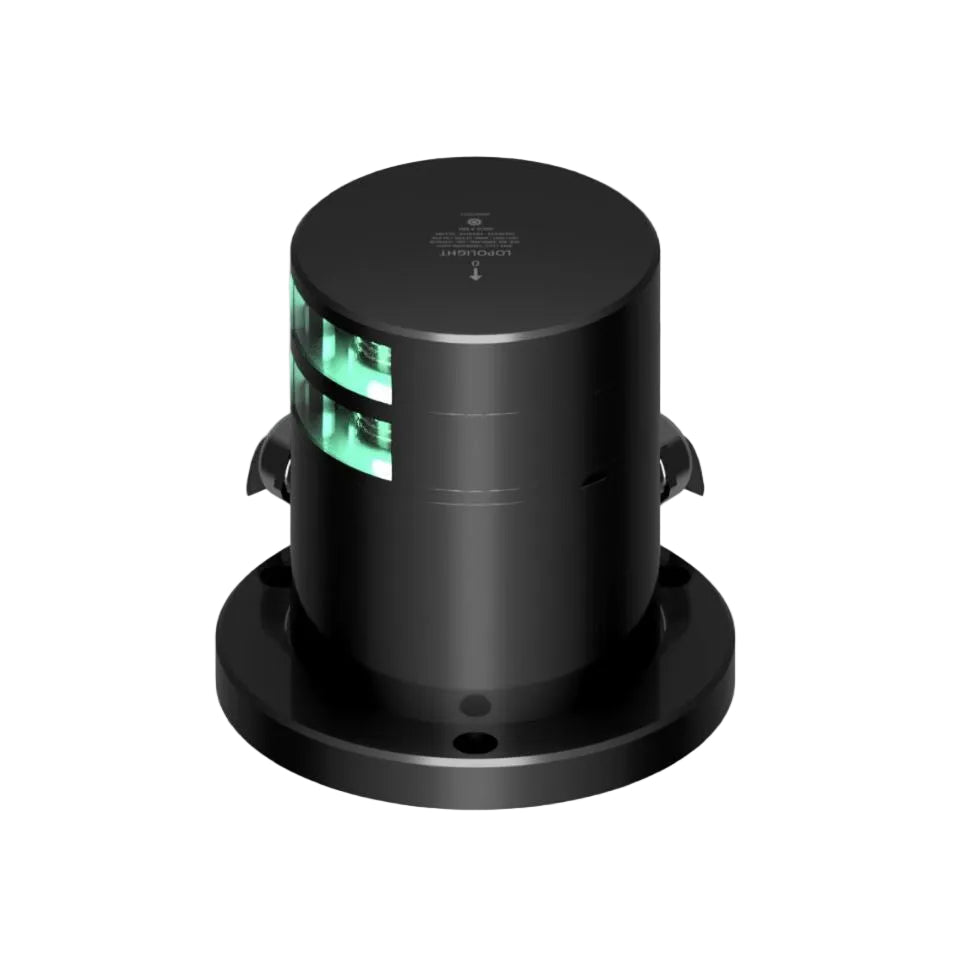

NAV LIGHT 2NM, 112,5° GREEN STARBOARD, DOUBLE, BLACK
NAV LIGHT 2NM, 112,5° GREEN STARBOARD, DOUBLE, BLACK
Item number:
SKU:201221
- Manufacturer number: 301-008ST-PRO-I
Couldn't load pickup availability
The ICE-CLASS LED Navigation lights, is among our most advanced series, made specially for arctic weather conditions, with the best technology available and impressive robustness. It is the best Ice-light on the marked, which you can depend on in tough conditions.
-
Built-in De-icing function
Horizontally mounted on 400-037 POM base (IP68)
Cable direction side
Incl.HDPE base plate
Quality cable glands
7-13mm (9/32"- 1/2") cable diameter
301-008ST-PRO-I
Specifications
Specifications
Approved to: COLREG72, EN14744, IEC 60945, IACS, E10 USCG, ABS, M.E.D., DNV, LR
Operating temperature: -60°C to 55°C
Operating Voltage: 20-32VDC
Power draw (W): 1,4
Current consumption (mA @ 12VDC): 110
Current consumption (mA @ 24VDC): 60
Weight (Kg): 1,4
Light Color: Green
Intensity: >5,4cd
Visibility: 2NM
Mounting: Horizontal
Vessel size: 12-20m, 20-50m
Included In Package: 1 Navigation light, 2 mounting screws (M6 * 8 mm), Installation guide.
Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane.
IP rating: IP68
Connection: Plug connector
Min. feed wire gauge: 1.5mm2 AWG18
