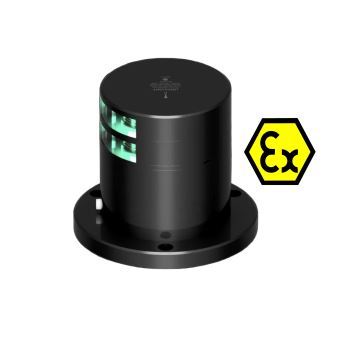

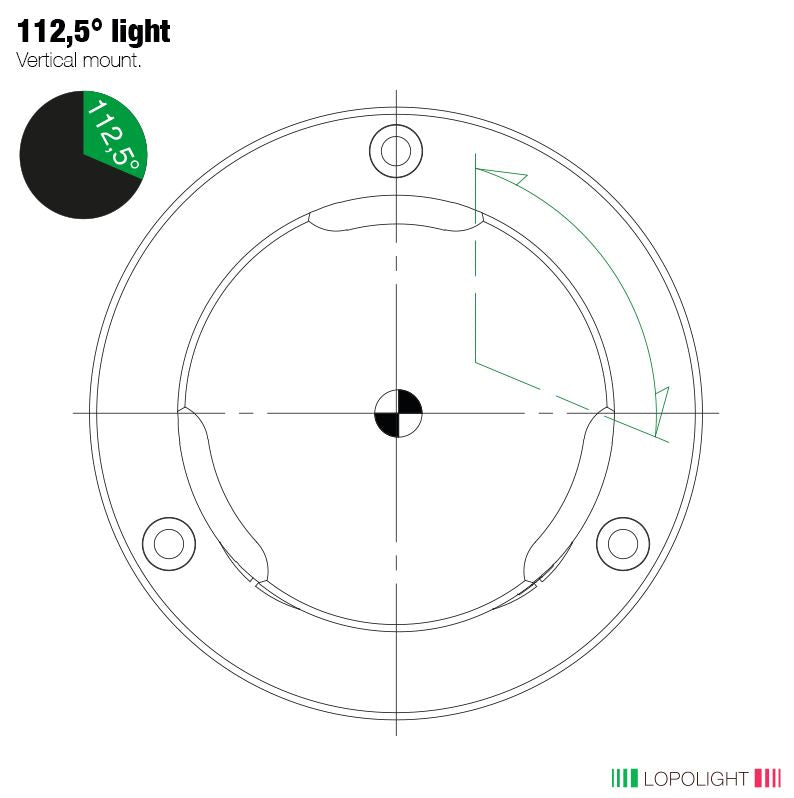

NAV LIGHT 2NM, 112,5° GREEN STB, DOUBLE, BLACK EX Zone 1&2

NAV LIGHT 2NM, 112,5° GREEN STB, DOUBLE, BLACK EX Zone 1&2

Item number:

201167

  • Manufacturer number: 301-008ST-PRO-EX

  • Certified for use in ATEX Zone 1 & 2
    Horizontally mounted on 400-037-B alu base (IP68)
    Cable direction side, incl. HDPE Base Plate
    No Cable glands or Ground strap included.

301-008ST-PRO-EX

Specifications

Specifications

Approved to: COLREG72, EN14744, IEC 60945,IACS, E10 USCG, ABS, M.E.D., DNV,BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex

Special attributes: IEC Ex Zone 1 certified, ATEX Zone 1 certified

Operating temperature: -25°C to 55°C

Operating Voltage: 10-32VDC

Power draw (W): 1

Current consumption (mA @ 12VDC): 100

Current consumption (mA @ 24VDC): 57

Weight (Kg): 1,41

Light Color: Green

Visibility: 2NM

Mounting: Horizontal

Vessel size: Under 12m, 12-20m, 20-50m

Included In Package: 1 Navigation light, Installation guide.

Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane.

IP rating:  IP68

Connection: Plug connector

Min. feed wire gauge: 0.5mm2 AWG22
