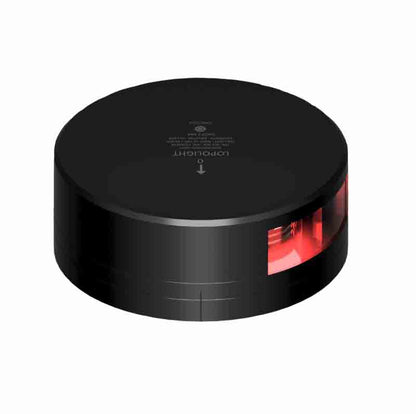

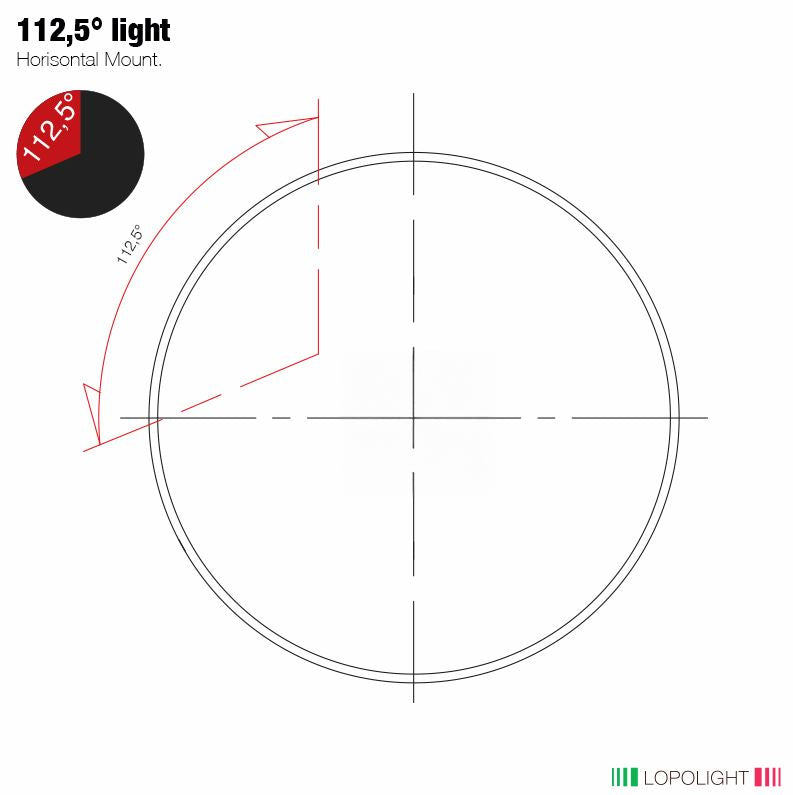

NAV LIGHT 2NM, 112.5° PORT SIDELIGHT, HM, 2.5M CABLE, BLACK

NAV LIGHT 2NM, 112.5° PORT SIDELIGHT, HM, 2.5M CABLE, BLACK

Item number:

200393

  • Manufacturer number: 301-009-FB-B
Logg inn for å se priser

Exc. VAT
  • LED navigation light.
  • Unique and precise definition of light angles.
  • Rugged and unbreakable: Precision machined anodised aluminium housing protects the LED’s and electronics.
  • Completely waterproof and vibrationproof: Interior is fully filled and sealed with special potting resin.
  • Waterproof to IP 68+ (submersible).
  • Low power consumption – 70 to 90% less than traditional navigation lights.
  • Full brightness with input voltages ranging from 10 to 32 Volts.
  • All Lopolights have been tested several times during production, a total of more than 24 hours.
  • Easy to install, adaptor and screws included (when applicable).

301-009-FB-B

Specifications

Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR

Operating temperature: -25°C to 55°C

Operating Voltage: 10-32VDC

Power draw (W): 1,2

Current consumption (mA @ 12VDC): 90

Current consumption (mA @ 24VDC): 50

Weight (Kg): 0. 57

Light Color: Red

Intensity: >5.4cd

Visibility: 2nm

Mounting: Horizontal

Vessel size: Under 12M, 12-20M, 20-50M

Included In Package: 1 Navigation light, 2 Mounting
screws (M6 * 8 mm), Installation guide, precabled with 2.5 meter shielded marine grade cable

IP rating: IP68

Connection: 2.5m cable

Min. feed wire gauge: 0.5mm2 AWG22

Downloads:

Data sheet View full details
