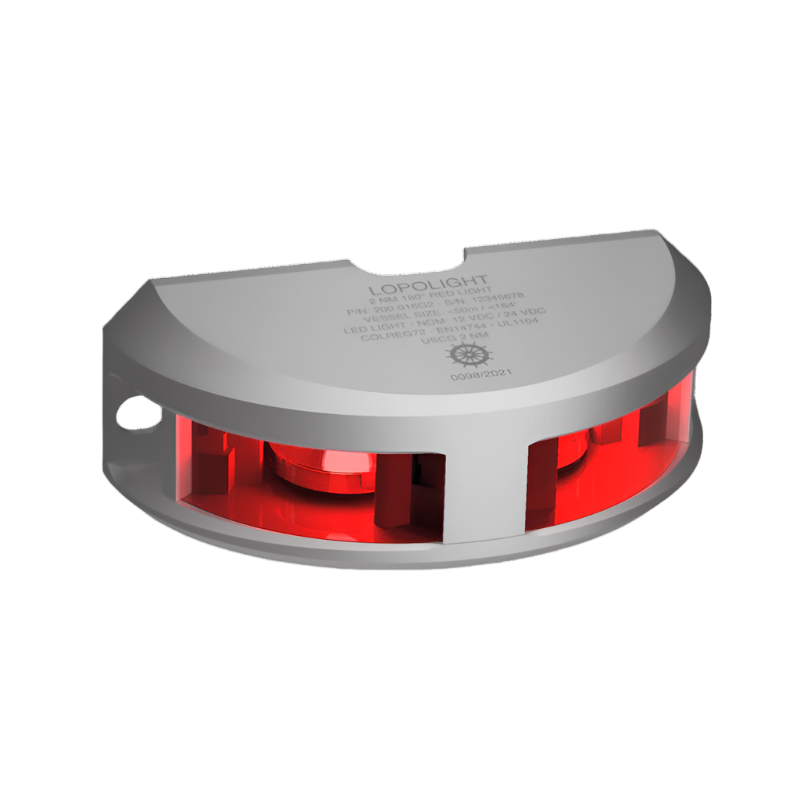

NAV LIGHT 2NM, 180° RED, VM, 0.75M CABLE

Item number:

SKU:200764

LED navigation light.
Unique and precise definition of light angles.
Rugged and unbreakable: Precision machined anodised aluminium housing protects the LED’s and electronics.
Completely waterproof and vibrationproof: Interior is fully filled and sealed with special potting resin.
Waterproof to IP 68+ (submersible).
Low power consumption – 70 to 90% less than traditional navigation lights.
Full brightness with input voltages ranging from 10 to 32 Volts.
All Lopolights have been tested several times during production, a total of more than 24 hours.
Easy to install, adaptor and screws included (when applicable).

200-016G2

Specifications

Approved to: COLREG72,EN14744,IEC 60945,IACS, E10,USCG,ABS,M.E.D.,DNV,LR

Operating temperature: -25°C to 55°C

Operating Voltage: 10-32VDC

Power draw (W): 1,5

Current consumption (mA @ 12VDC): 145

Current consumption (mA @ 24VDC): 60

Weight (Kg): 0.34

Light Color: Red

Intensity: >5.4cd

Visibility: 2nm

Mounting: Vertical

Vessel size: Under 12M,12-20M,20-50M

Included In Package: 1 Navigation light,precabled with 0.75 meter shielded marine grade cable, Installation guide

Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane

IP rating: IP68

Connection: 0.75m cable

Min. feed wire gauge: 0.5mm2 AWG22
