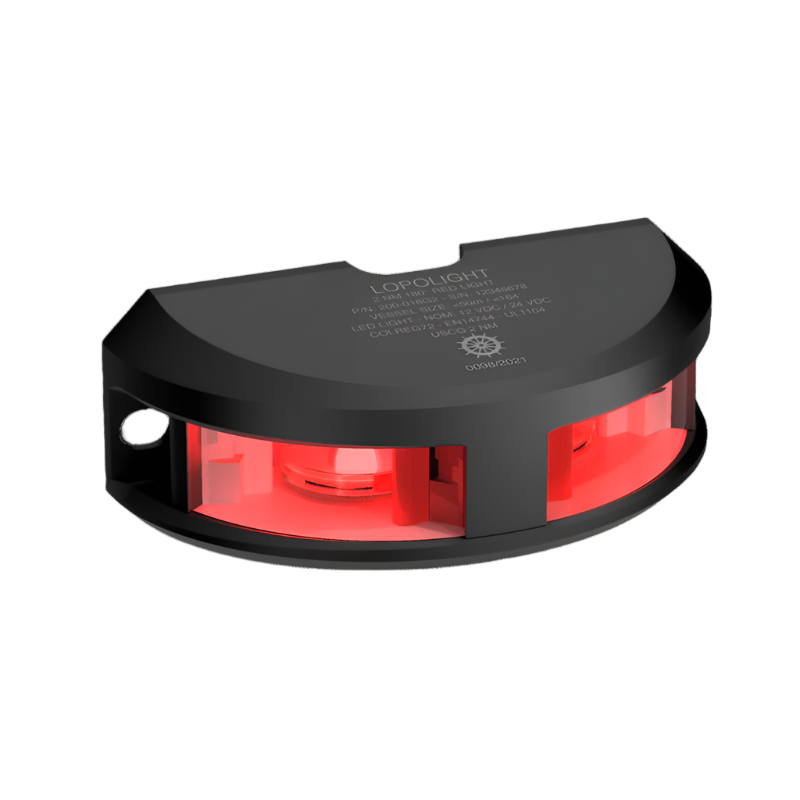

NAV LIGHT 2NM, 180° RED, VM, 0.75M CABLE, BLACK

Specifications

Approved to: COLREG72, EN14744, IEC 60945, IACS
E10, USCG, ABS, M.E.D., DNV, LR

Operating temperature: -25°C to 55°C

Operating Voltage: 10-32VDC

Current consumption (mA @ 12VDC): 145

Current consumption (mA @ 24VDC): 60

Weight (Kg): 0.34

Light Color: Red

Intensity: >5.4cd

Visibility: 2NM

Mounting: Vertical

Vessel size: Under 12m, 12-20m, 20-50m

Included In Package: 1 Navigation light, precabled with 0.75 meter shielded marine grade cable, Installation guide.

Materials: Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane.

IP rating: IP68

Connection: 0.7m cable

Min. feed wire gauge: 0.5mm2 AWG22
