Specifications
Approved to: COLREG72, EN14744, IEC 60945, IACS, E10
USCG, ABS, M.E.D., DNV, LR
Operating temperature: -25°C to 55°C
Operating Voltage: 10-32VDC
Power draw (W): 2,1
Current consumption (mA @ 12VDC): 150
Current consumption (mA @ 24VDC): 85
Weight (Kg): 0.45
Light Color: Green
Visibility: 2NM

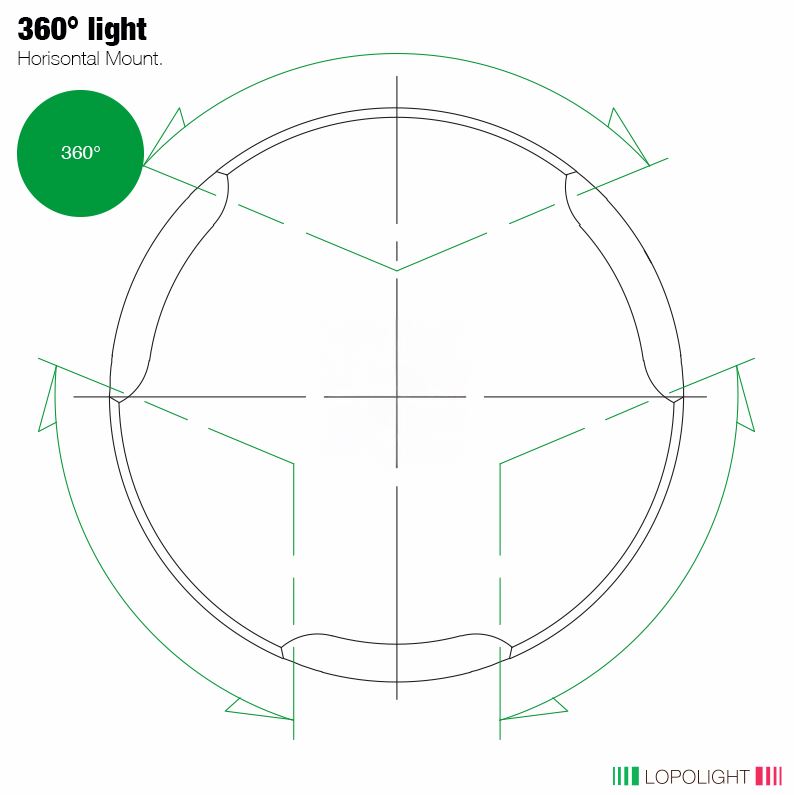

Mounting: Horizontal
Vessel size: Under 12m, 12-20m, 20-50m
Included In Package: 1 Navigation light, precabled with 0,75 meter shielded marine grade cable, Installation guide.
Materials: Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane.
IP rating: IP68
Connection: 0,7m cable
Min. feed wire gauge: 0.5mm2 AWG22
