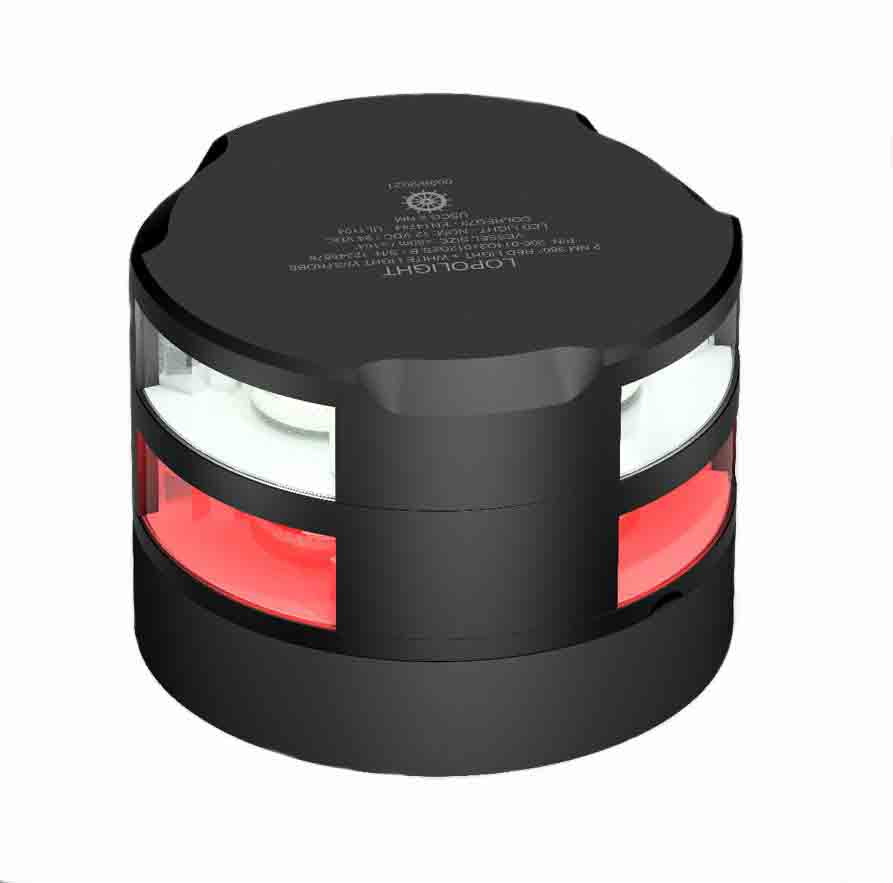

NAV LIGHT 2NM, 360° RED + 2NM 360° WHITE, BLACK

NAV LIGHT 2NM, 360° RED + 2NM 360° WHITE, BLACK

Item number:

200914

  • Manufacturer number: 200-014G2+012G2S-B
  • LED navigation light.
  • Unique and precise definition of light angles.
  • Rugged and unbreakable: Precision machined anodised aluminium housing protects the LED’s and electronics.
  • Completely waterproof and vibrationproof: Interior is fully filled and sealed with special potting resin.
  • Waterproof to IP 68+ (submersible).
  • Low power consumption – 70 to 90% less than traditional navigation lights.
  • Full brightness with input voltages ranging from 10 to 32 Volts.
  • All Lopolights have been tested several times during production, a total of more than 24 hours.
  • Easy to install, adaptor and screws included (when applicable).

 200-014G2+012G2S-B

Specifications

Approved to: COLREG72, EN14744, IEC 60945, IACS, E10, USCG, ABS, M.E.D., DNV, LR

Operating temperature: -25°C to 55°C

Operating Voltage: 10-32VDC

Current consumption (mA @ 12VDC): 170

Current consumption (mA @ 24VDC): 85

Weight (Kg): 0.82

Light Color: Red, white

Intensity: >5.4cd

Visibility: 2nm

Mounting: Horizontal

Vessel size: Under 12m, 12-20m, 20-50m

Materials: Black anodized aluminum 25μ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane

IP rating: IP68

Connection: 0.7m cable
