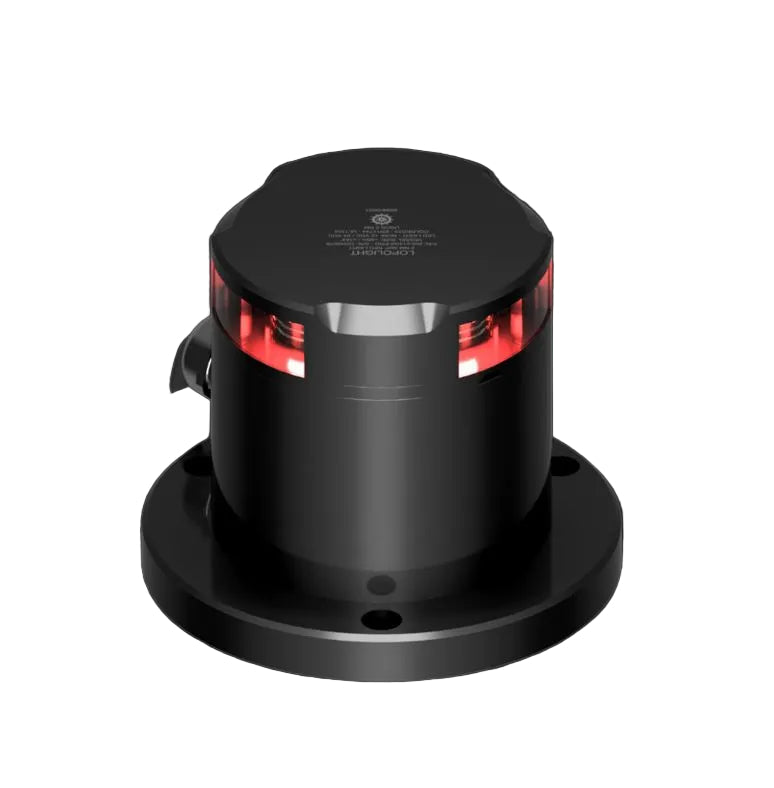

NAV LIGHT 2NM, 360° RED, HM, BLACK

NAV LIGHT 2NM, 360° RED, HM, BLACK

Item number:

201081

  • Manufacturer number: 200-014G2-PRO-I
Logg inn for å se priser

Exc. VAT

  • Built-in De-icing function

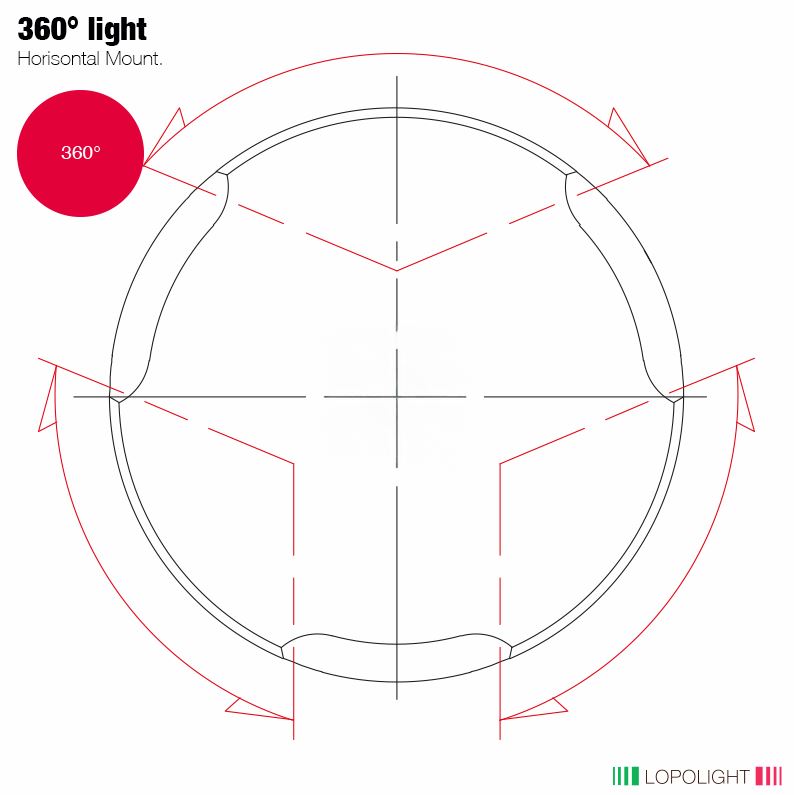

    Horizontally mounted on 400-037 POM base (IP68)
    Cable direction side
    incl.HDPE base plate...

200-014G2-PRO-I

Specifications

Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR

Operating temperature: -60°C to 55°C

Operating Voltage: 10-32VDC

Power draw (W): 2,1 (When de-icing ~15W @24VDC)

Current consumption (mA @ 12VDC): 150

Current consumption (mA @ 24VDC): 85

Weight (Kg): 1,0 Kg

Light Color: Red

Intensity: >5.4cd

Visibility: 2nm

Mounting: Horizontal

Vessel size: Under 12M, 12-20M, 20-50M

Materials: Black hard coat anodized aluminum 50μ, PMMA lens, A4 stainless steel screws, Epoxy,
Polyurethane.

IP rating: IP68

Connection: Plug connector

Min. feed wire gauge: 1.5mm2 AWG18
