NAV LIGHT 2NM, 360° WHITE, HM, 2,5M CABLE, BLACK

NAV LIGHT 2NM, 360° WHITE, HM, 2,5M CABLE, BLACK

Item number:

201092

  • Manufacturer number: 201-012-FB-B 2,5M
Logg inn for å se priser

Exc. VAT

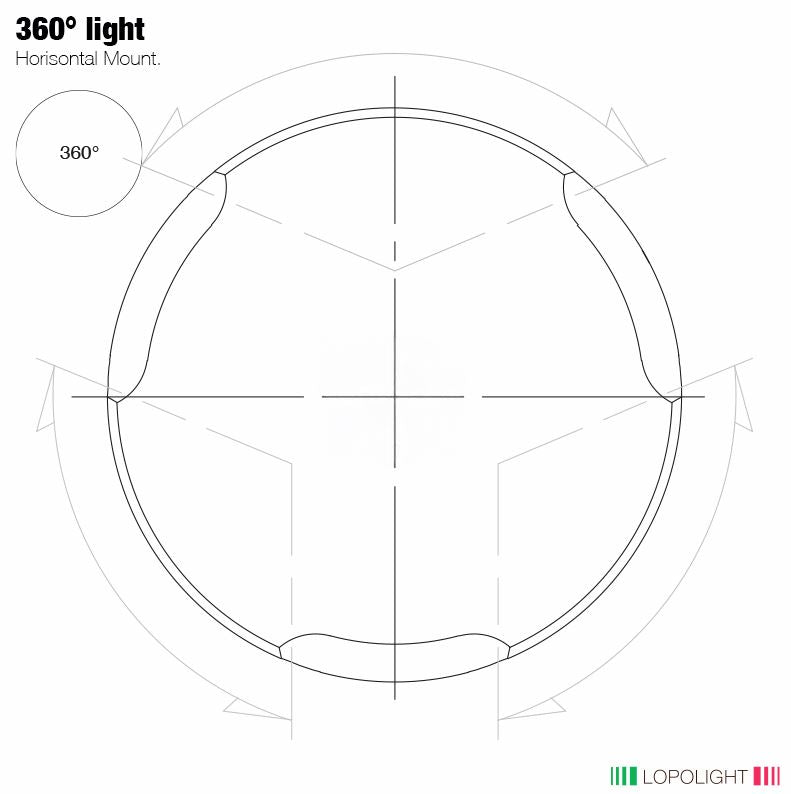

  • Horizontally mounted with 2,5m cable

    FB (flat base) POM mounting system

201-012-FB-B 2,5M

Specifications

Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR

Operating temperature: -25°C to 55°C

Operating Voltage: 10-32VDC

Power draw (W): 2,6

Current consumption (mA @ 12VDC): 167

Current consumption (mA @ 24VDC): 110

Weight (Kg): 0.52 Kg

Light Color: White

Visibility: 2nm

Mounting: Horizontal

Vessel size: Under 12M, 12-20M, 20-50M

Included In Package: 1 Navigation light, Installation guide, precabled with 2.5 meter shielded
marine grade cable

Materials: Black anodized aluminum 25μ,
PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane.

IP rating: IP68

Connection: 2.5m cable

Min. feed wire gauge: 0.5mm2 AWG22
