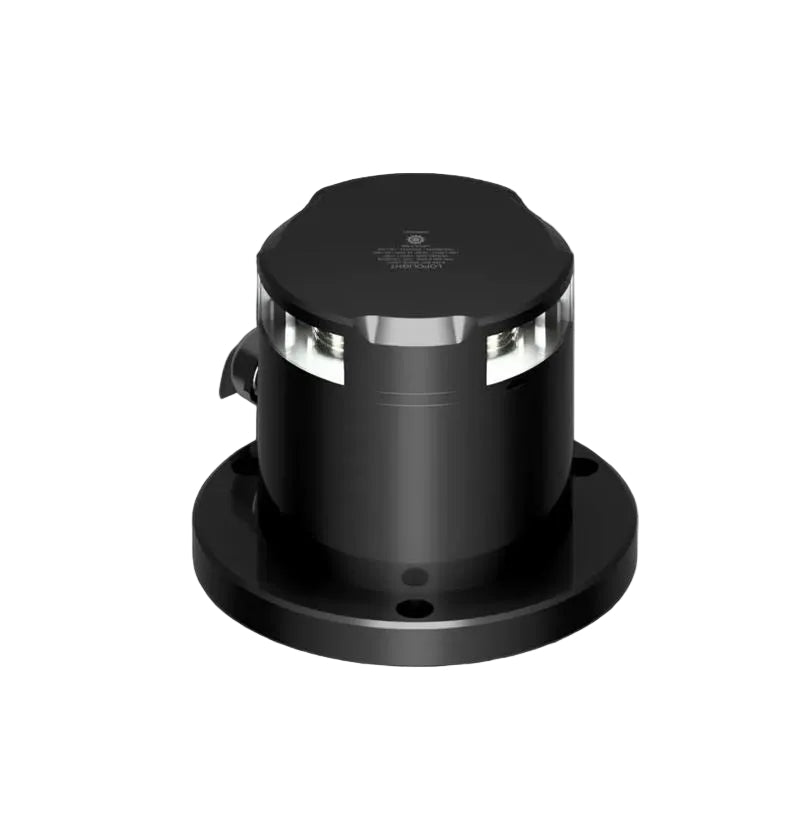

NAV LIGHT 2NM, 360° WHITE, HM, BLACK

NAV LIGHT 2NM, 360° WHITE, HM, BLACK

Item number:

201080

  • Manufacturer number: 200-012G2-PRO-I
Logg inn for å se priser

Exc. VAT

  • Built-in De-icing function

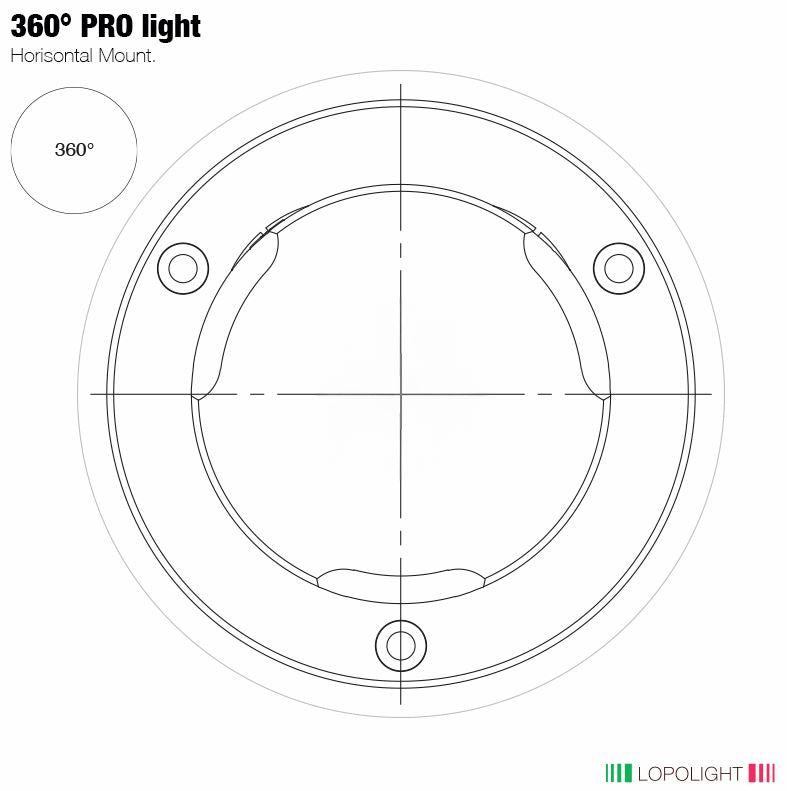

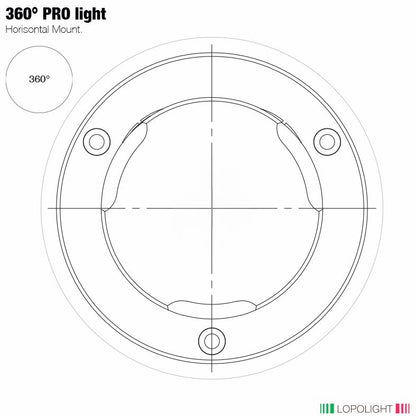

    Horizontally mounted on 400-037 POM base (IP68)
    Cable direction side
    incl.HDPE base plate..

200-012G2-PRO-I

Specifications

Approved to: COLREG72,EN14744,IEC 60945,IACS
E10,USCG,ABS,M.E.D.,DNV,LR

Operating temperature:  -60°C to 55°C

Operating Voltage: 10-32VDC

Power draw (W): 2,6

Current consumption (mA @ 12VDC):   167

Current consumption (mA @ 24VDC):   110

Weight (Kg):  0.99 Kg

Light Color: White

Intensity: >5.4cd

Visibility:  2nm

Mounting:   Horizontal

Vessel size: Under 12M, 12-20M, 20-50M

Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane.

IP rating: IP68

Connection: Plug connector

Min. feed wire gauge: 1.5mm2 AWG18
