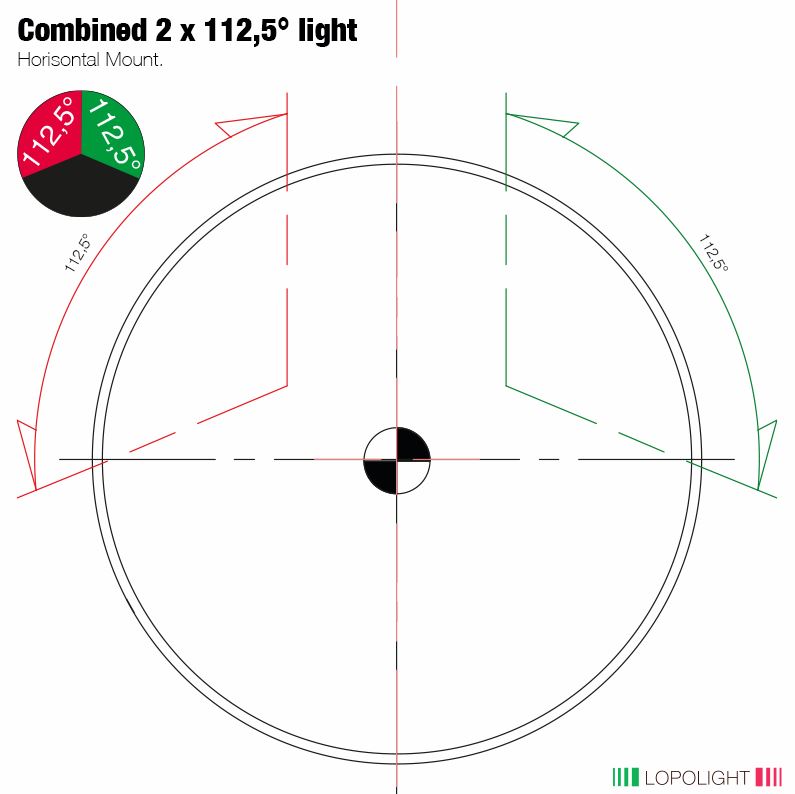

NAV LIGHT 2NM, GREEN/RED, COMB. SIDEL., VM, 2.5M CABLE

NAV LIGHT 2NM, GREEN/RED, COMB. SIDEL., VM, 2.5M CABLE

Item number:

200236

  • Manufacturer number: 201-004
Logg inn for å se priser

Exc. VAT
  • For Boats and Yachts up to 20m.
  • High quality materiels used for long life.
  • Water and vibration proof.
  • No EMC noise on your AIS/VHF.
  • Multi voltage - 12 to 24 Volt.
  • Worldwide approvals.
  • Included potted-in power cable for ultimate waterproofness.
  • 5 year warranty.

201-004

Specifications

Approved to: COLREG72,EN14744,IEC 60945,IACS
E10,USCG,ABS,M.E.D.,DNV,LR

Operating temperature: -25°C to 55°C

Operating Voltage: 10-32VDC

Power draw (W): 2,2

Current consumption (mA @ 12VDC): 163

Current consumption (mA @ 24VDC): 90

Weight (Kg): 0.5

Light Color: Red,Green

Intensity: >5.4cd

Visibility: 2nm

Mounting: Vertical

Vessel size: 12-20M

Included In Package: 1 Navigation light,2 Mounting
screws (M6 * 8 mm),Installation guide,precabled with 2.5 meter shielded marine grade cable

Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane

IP rating: IP68

Connection: 2.5m cable

Min. feed wire gauge: 0.5mm2 AWG22
