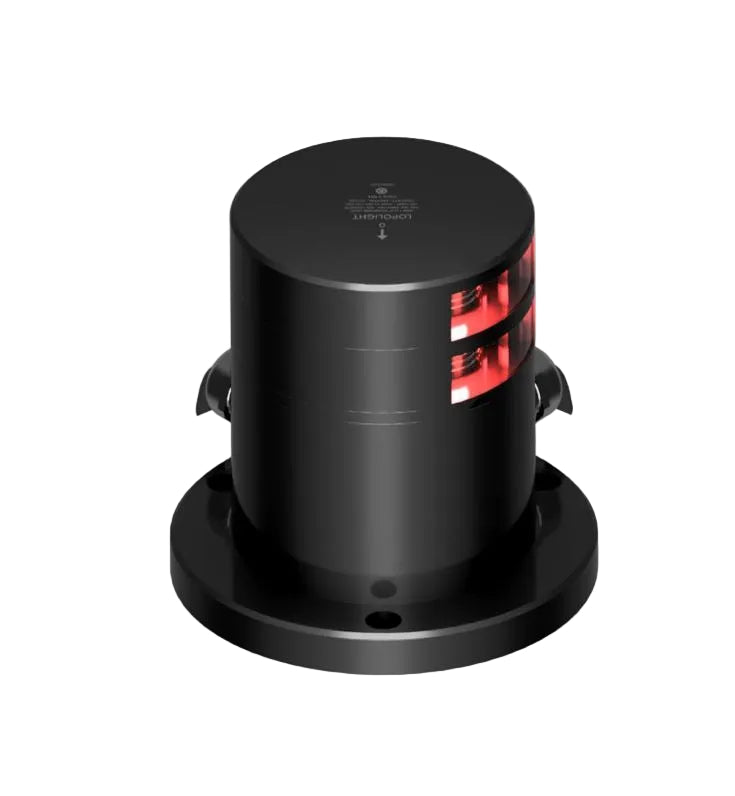

NAV LIGHT 2NM, RED PORT, DOUBLE, HM, BLACK

NAV LIGHT 2NM, RED PORT, DOUBLE, HM, BLACK

Item number:

201077

  • Manufacturer number: 301-009ST-PRO
Logg inn for å se priser

Exc. VAT

This LED navigation light is our professional range for commercial vessels. The PRO series has the best technology available and impressive robustness, made with a thicker and harder anodization.

  • Horizontally mounted on POM base (IP68)

    Cable direction side

    incl.HDPE base plate

    Quality cable glands - 2 sizes included:...

    7-13mm (1/4"-1/2") cable diameter

    4.5-10mm (5/32"-3/8") cable diameter

301-009ST-PRO

Specifications

Approved to: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR

Operating temperature: -25°C to 55°C

Operating Voltage: 10-32VDC

Power draw (W): 1,2

Current consumption (mA @ 12VDC): 90

Current consumption (mA @ 24VDC): 50

Weight (Kg): 1.41

Light Color: Red

Intensity>5.4cd

Visibility: 2NM

Mounting: Horizontal

Vessel size: 12-20M,20-50M

Included In Package: 1 Navigation light,2 Mounting screws (M6 * 8 mm),Installation guide

Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane

IP rating: IP68

Connection: Plug connector

Min. feed wire gauge: 0.5mm2 AWG22
