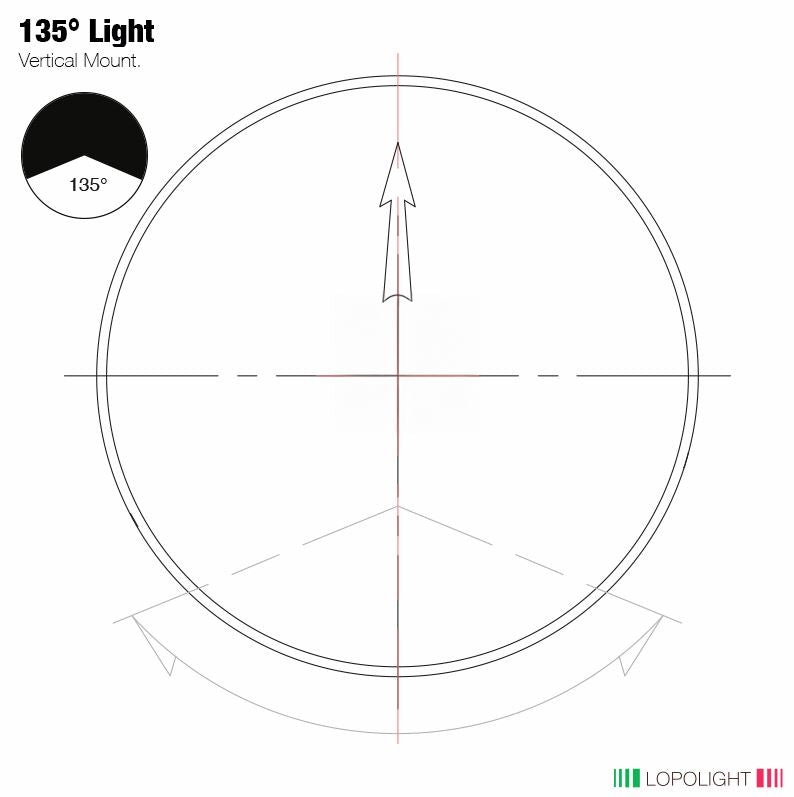

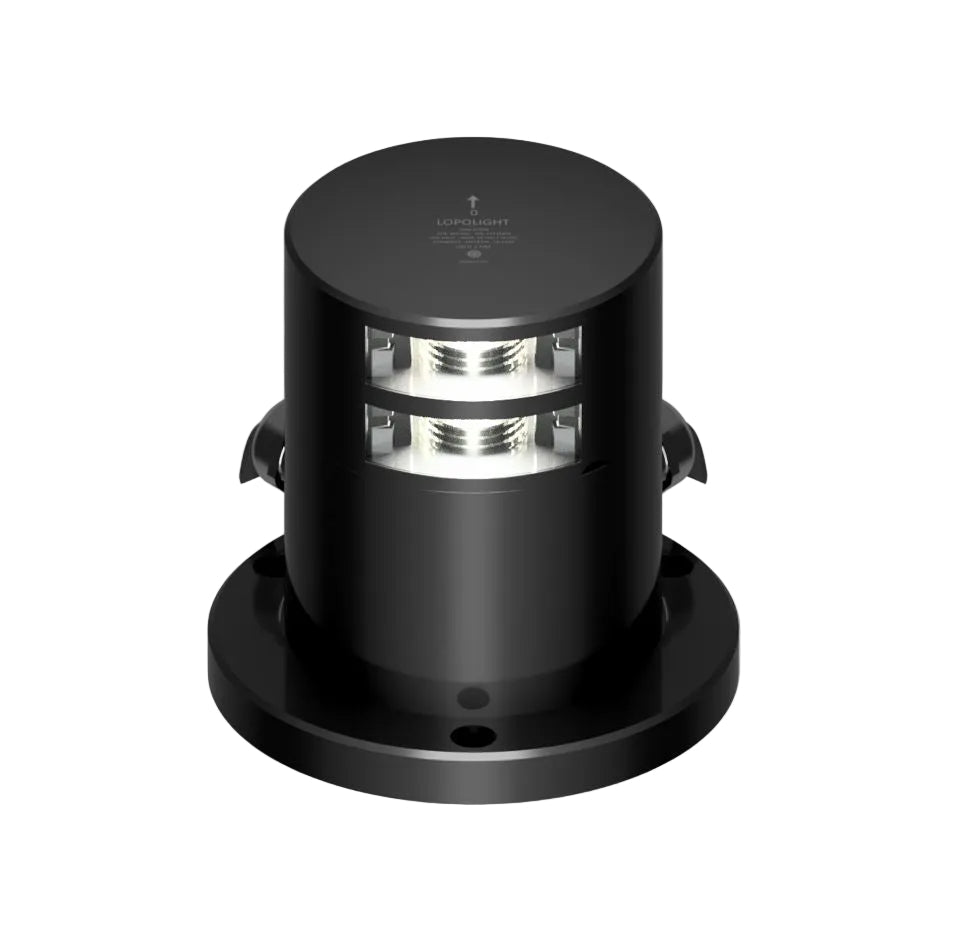

NAV LIGHT 2NM, 135° WHITE STERN, DOUBLE, HM, BLACK

NAV LIGHT 2NM, 135° WHITE STERN, DOUBLE, HM, BLACK

Item number:

201075

  • Manufacturer number: 301-005ST-PRO

This LED navigation light is our professional range for commercial vessels. The PRO series has the best technology available and impressive robustness, made with a thicker and harder anodization.

  • Horizontally mounted on POM base (IP68)

    Cable direction side

    Incl.HDPE base plate

    Quality cable glands - 2 sizes included:

    7-13mm (1/4"-1/2") cable diameter

    4.5-10mm (5/32"-3/8") cable diameter

301-005ST-PRO

Specifications

Specifications

Approved to: COLREG72, EN14744, IEC 60945, IACS, E10, USCG, ABS, M.E.D., DNV, LR

Operating temperature (°C): -25 to 55

Operating Voltage: 10-32VDC

Power draw (W): 1,3

Current consumption (mA @ 12VDC): 110

Current consumption (mA @ 24VDC): 50

Weight (Kg): 1.41

Light color: White

Intensity: >5.4cd

Visibility: 2NM

Mounting: Horizontal

Vessel size: Under 12m, 12-20m, 20-50m

Included In Package: 1 Navigation light, 2 Mounting screws (M6 * 8 mm), Installation guide.

Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane

IP rating: 68

Connection: Plug connector

Min. feed wire gauge: 0.5mm2 AWG22
