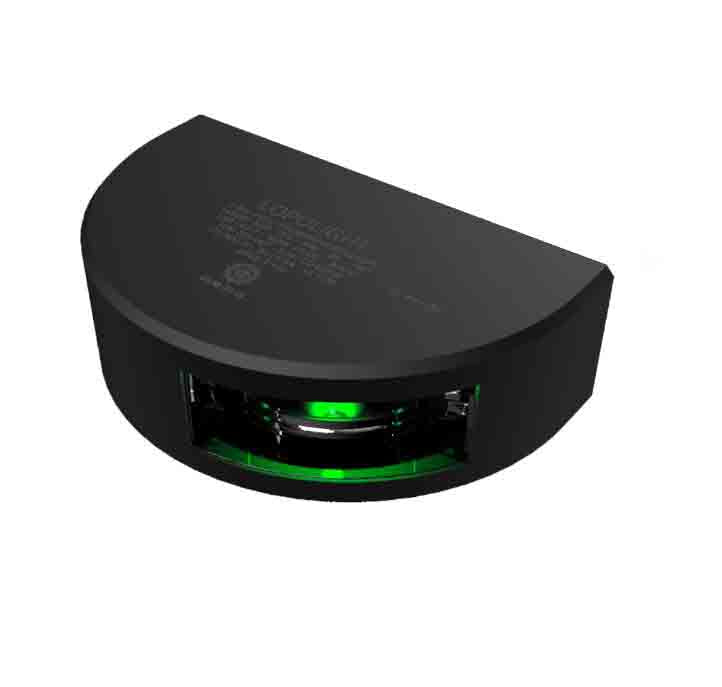

NAV LIGHT 3NM, 112.5° GREEN STB, VM, 2.5M CABLE, BLACK

NAV LIGHT 3NM, 112.5° GREEN STB, VM, 2.5M CABLE, BLACK

Item number:

200904

  • Manufacturer number: 301-101-B
Logg inn for å se priser

Exc. VAT
  • LED navigation light.
  • Unique and precise definition of light angles.
  • Rugged and unbreakable: Precision machined anodised aluminium housing protects the LED’s and electronics.
  • Completely waterproof and vibrationproof: Interior is fully filled and sealed with special potting resin.
  • Waterproof to IP 68+ (submersible).
  • Low power consumption – 70 to 90% less than traditional navigation lights.
  • Full brightness with input voltages ranging from 10 to 32 Volts.
  • All Lopolights have been tested several times during production, a total of more than 24 hours.
  • Easy to install, adaptor and screws included (when applicable).

301-101-B

Specifications

Approved to: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR

Operating temperature: -25°C to 55°C

Operating Voltage: 10-32VDC

Power draw (W): 2,3

Current consumption (mA @ 12VDC): 180

Current consumption (mA @ 24VDC): 100

Weight (Kg): 0.38

Light Color: Green

Intensity: >15cd

Visibility: 3nm

Mounting: Vertical

Vessel size: Over 50M

Included In Package: 1 Navigation light,  2 Mounting screws (M6 * 8 mm), Installation guide, precabled with 2.5 meter shielded marine grade cable.

Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane

IP rating: IP68

Connection: 2.5m cable

Min. feed wire gauge: 0.5mm2 AWG22

Downloads:

Data sheet View full details
