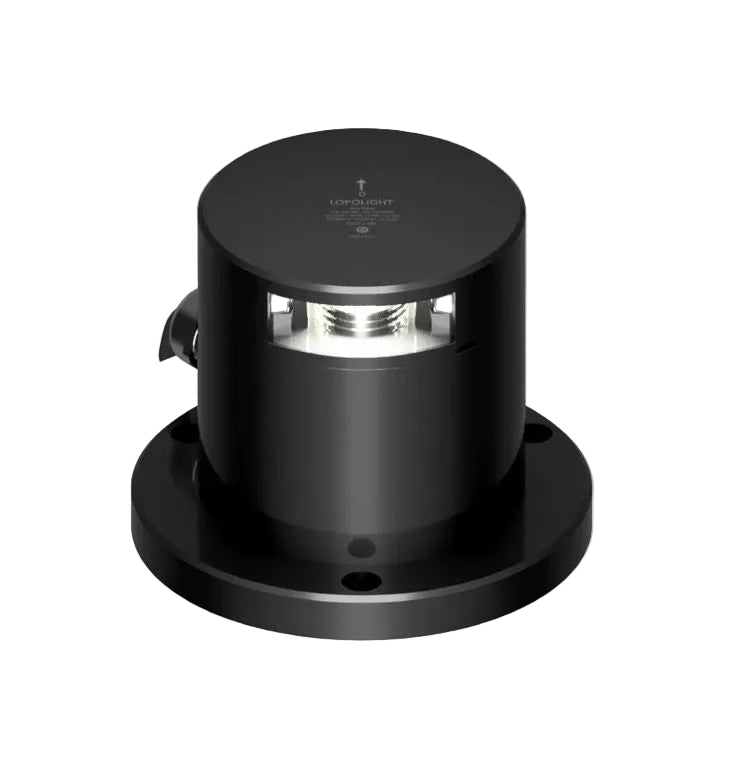

NAV LIGHT 3NM, 135° WHITE STERN, HM, SINGLE, BLACK

NAV LIGHT 3NM, 135° WHITE STERN, HM, SINGLE, BLACK

Item number:

201329

  • Manufacturer number: 301-105-PRO

  • Horizontally mounted on 400-037 POM base (IP68)
    Cable direction side
    incl. HDPE base plate
    Quality cable glands
    7-13mm (9/32"- 1/2") cable diameter

301-105-PRO

Specifications

Specifications

Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR

Operating temperature (°C): -25 to 55

Operating Voltage: 10-32VDC

Power draw (W): 1,7

Current consumption (mA @ 12VDC): 130

Current consumption (mA @ 24VDC): 72

Weight (Kg): 1,5

Light Color: White

Intensity: >15cd

Visibility: 3NM

Mounting: Horizontal

Vessel size: Over 50m

Included In Package: 1 Navigation light, Installation guide.

Materials: Black anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane.

IP rating: 68

Connection: Plug connector

Min. feed wire gauge: 0.5mm2 AWG22
