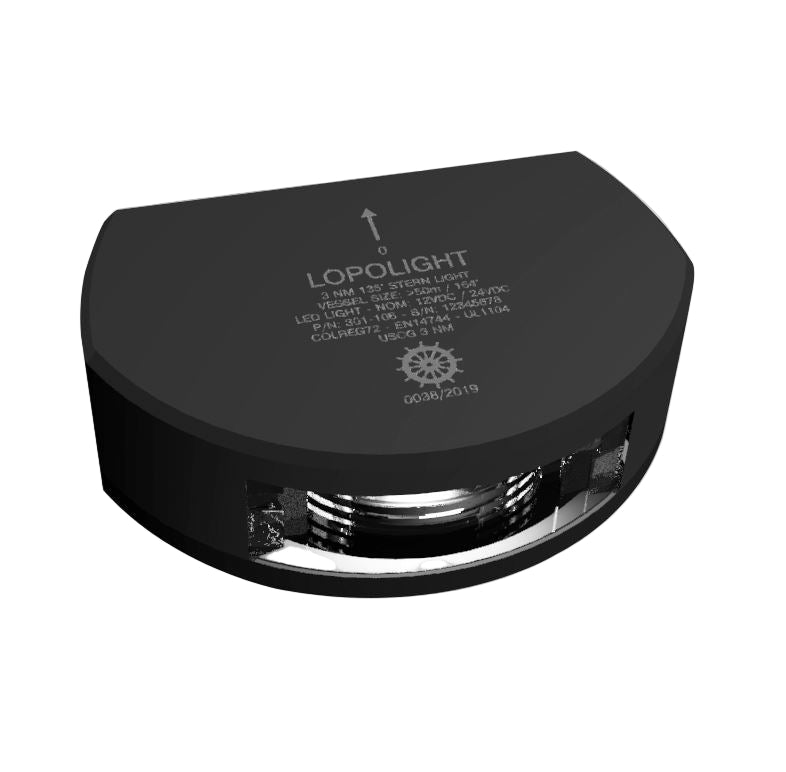

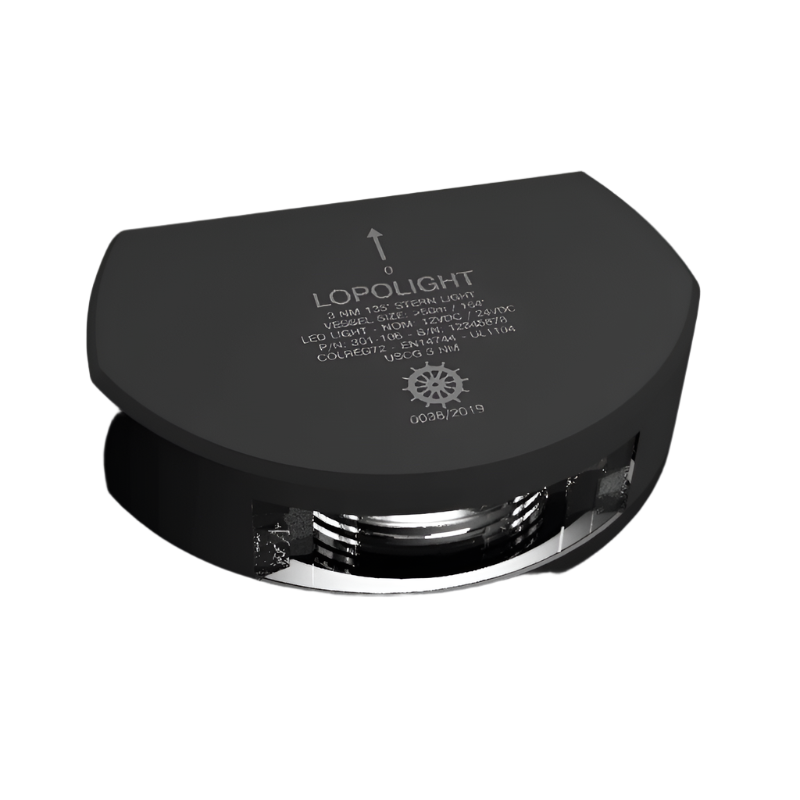

NAV LIGHT 3NM, 135° WHITE STERN, VM, 2.5M CABLE, BLACK

NAV LIGHT 3NM, 135° WHITE STERN, VM, 2.5M CABLE, BLACK

Item number:

200906

  • Manufacturer number: 301-106-B
Log in to see prices

Exc. VAT

This LED Navigation light comes in black and silver, with the best technology available and impressive robustness. It is easy to install. Below is a list of more great features.

  • For Boats and Yachts up to 50m (164 ft)
    High quality materials used for long life.
    Water and vibration proof.
    No EMC noise on your AIS/VHF.
    Multivoltage - 12 to 24 Volt.
    Worldwide approvals.
    Including potted-in power cable for ultimate waterproofness.
    5 year warranty.

301-106-B

Specifications

Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV,LR

Operating temperature: -25°C to 55°C

Operating Voltage: 10-32VDC

Power draw (W): 1,3

Current consumption (mA @ 12VDC): 110

Current consumption (mA @ 24VDC): 50

Weight (Kg): 0.42

Light Color: White

Intensity: >5.4cd

Visibility: 3nm

Mounting: Vertical

Vessel size: Under 12M,12-20M,20-50M

Included In Package: 1 Navigation light, 2 Mounting
screws (M6 * 8 mm), Installation guide, precabled with 2.5 meter shielded marine grade cable.

Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane.

IP rating: IP68

Connection: 2.5m cable

Min. feed wire gauge: 0.5mm2 AWG22

Downloads:

Data sheet View full details
