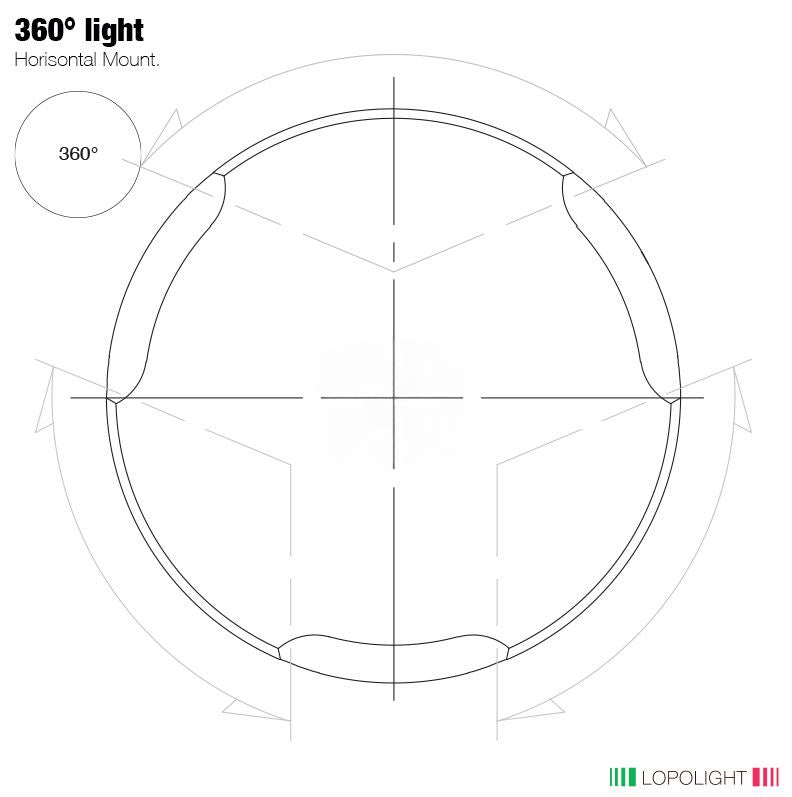

NAV LIGHT 3NM, 360° MASTHEAD, HM, 0.7M CABLE

NAV LIGHT 3NM, 360° MASTHEAD, HM, 0.7M CABLE

Item number:

200911

Logg inn for å se priser

Exc. VAT
  • LED navigation light.
  • Unique and precise definition of light angles.
  • Rugged and unbreakable: Precision machined anodised aluminium housing protects the LED’s and electronics.
  • Completely waterproof and vibrationproof: Interior is fully filled and sealed with special potting resin.
  • Waterproof to IP 68+ (submersible).
  • Low power consumption – 70 to 90% less than traditional navigation lights.
  • Full brightness with input voltages ranging from 10 to 32 Volts.
  • All Lopolights have been tested several times during production, a total of more than 24 hours.
  • Easy to install, adaptor and screws included (when applicable).

201-021-FB

Specifications

Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR

Operating temperature: -25°C to 55°C

Operating Voltage: 10-32VDC

Power draw (W): 3,6

Current consumption (mA @ 12VDC): 300

Current consumption (mA @ 24VDC): 148

Weight (Kg): 0.42

Light Color: White

Visibility: 3nm

Mounting: Horizontal

Vessel size: 12-20M

Included In Package: 1 Navigation light, precabled with 0,75 meter shielded marine grade cable, Installation guide.

Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane

IP rating: IP68

Connection: 0.7m cable

Min. feed wire gauge: 0.5mm2 AWG22
