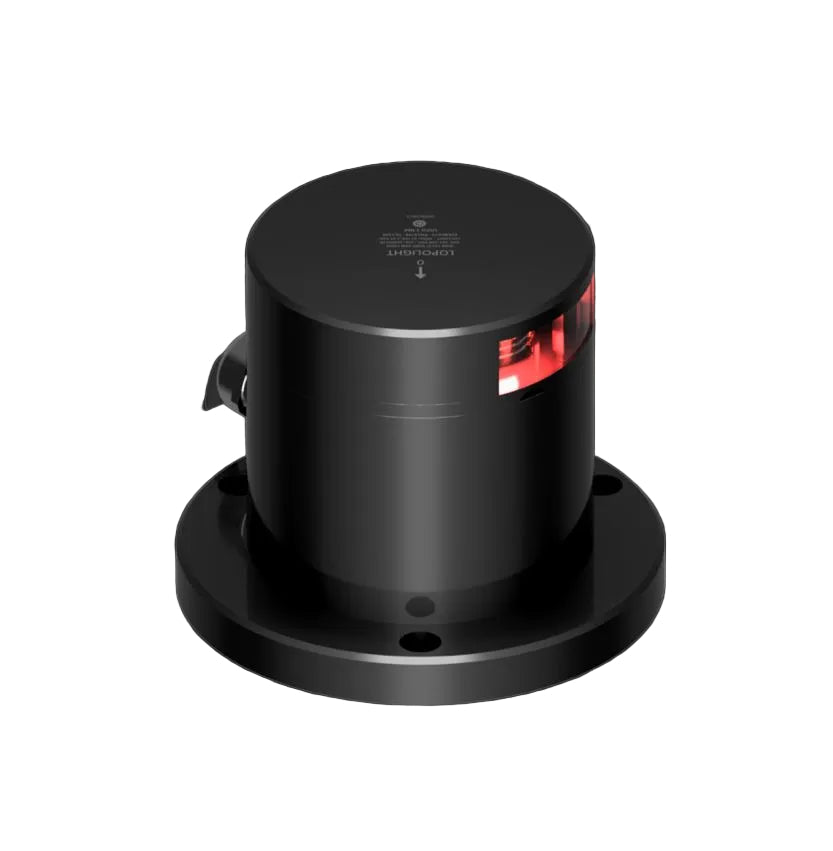

NAV LIGHT 3NM, RED PORT, HM, BLACK
NAV LIGHT 3NM, RED PORT, HM, BLACK
Item number:
SKU:201078
Exc. VAT
Couldn't load pickup availability
-
Built-in De-icing function
Horizontally mounted on 400-037 POM base (IP68)
Cable direction side
incl. HDPE base plate
Quality cable glands
7-13mm (9/32"- 1/2") cable diameter
301-109-PRO-I
Specifications
Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
Operating temperature: -60°C to 55°C
Operating Voltage: 20-32VDC
Power draw (W): 2,2
Current consumption (mA @ 12VDC): 153
Current consumption (mA @ 24VDC): 92
Weight (Kg): 0.8 Kg
Light Color: Red
Intensity: >15cd
Visibility: 3nm
Mounting: Horizontal
Vessel size: Over 50M
Included In Package: 1 Navigation light,2 Mounting
screws (M6 * 8 mm),Installation guide.
Materials: Black hard coat anodized aluminum 50μ, PMMA lens, A4 stainless steel screws, Epoxy,
Polyurethane.
IP rating: IP68
Connection: Plug connector
Min. feed wire gauge: 1.5mm2 AWG18
