NAV LIGHT 3NM, WHITE MASTHEAD, DOUBLE, HM, BLACK

NAV LIGHT 3NM, WHITE MASTHEAD, DOUBLE, HM, BLACK

Item number:

201074

Logg inn for å se priser

Exc. VAT

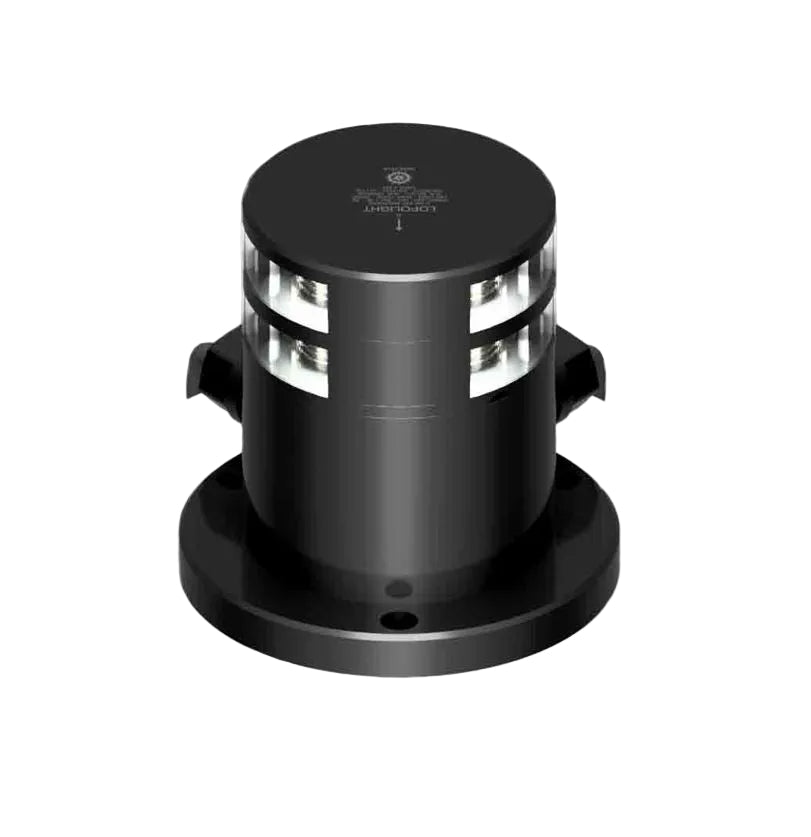

This LED navigation light is our professional range for commercial vessels. The PRO series has the best technology available and impressive robustness, made with a thicker and harder anodization.

  • Horizontally mounted on POM base (IP68)

    Cable direction side

    incl.HDPE base plate

    Quality cable glands - 2 sizes included:...

    7-13mm (1/4"-1/2") cable diameter

    4.5-10mm (5/32"-3/8") cable diameter

201-011KLST-PRO

Specifications

Approved to: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR

Operating temperature: -25°C to 55°C

Operating Voltage: 10-32VDC

Power draw (W): 3

Current consumption (mA @ 12VDC): 232

Current consumption (mA @ 24VDC): 127

Weight (Kg): 1.36

Light Color: White

Intensity: >15cd

Visibility: 3NM

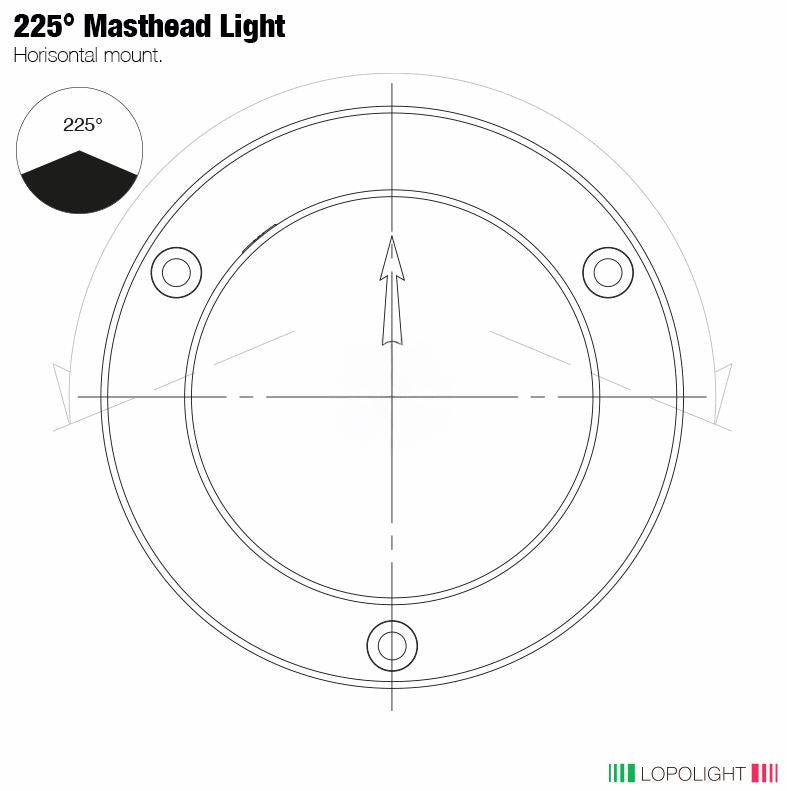

Mounting: Horizontal

Vessel size: 12-20M

Included In Package: 1 Navigation light,precabled with 0.75 meter shielded marine grade cable,2 Mounting screws (M6 * 8 mm),Installation guide

Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane

IP rating: IP68

Connection: Plug connector

Min. feed wire gauge: 0.5mm2 AWG22
