Item number:
SKU:200370
- Manufacturer number: 300-037
Couldn't load pickup availability

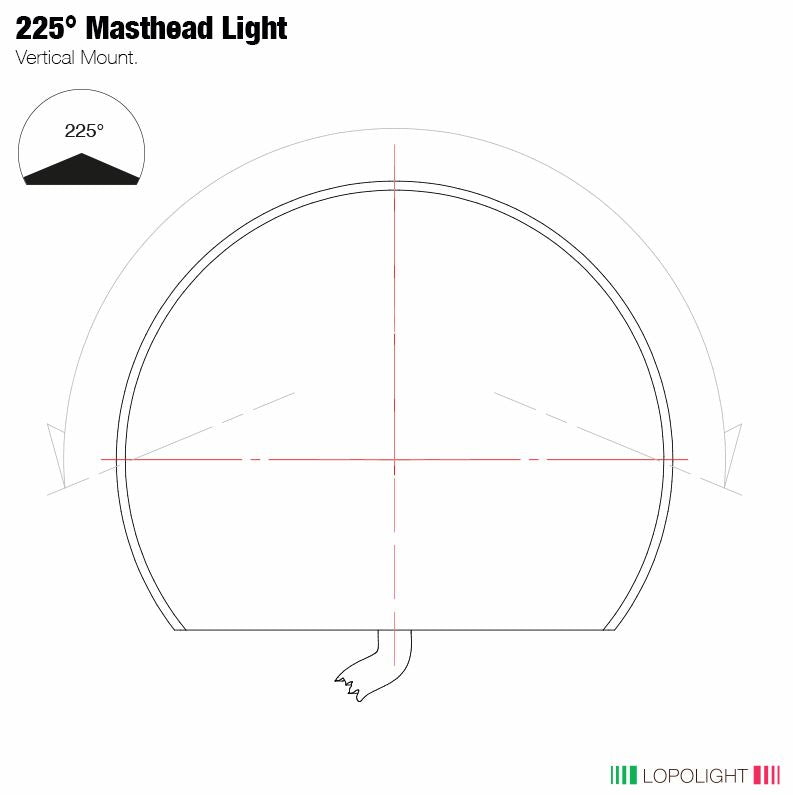

- Vertically mounted with 0,75m cable.
300-037
Specifications
Approved to: COLREG72,EN14744,IEC 60945,IACS
E10,USCG,ABS,M.E.D.,DNV,LR
Operating temperature: -25°C to 55°C
Operating Voltage: 20-32VDC
Power draw (W): 7
Current consumption (mA @ 12VDC): 0
Current consumption (mA @ 24VDC): 290
Weight (Kg): 1.06
Light Color: White
Intensity: >52cd
Visibility: 5NM
Mounting: Vertical
Vessel size: 20-50M
Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
IP rating: IP68
Connection: 0.7m cable
Min. feed wire gauge: 0.5mm2 AWG22
