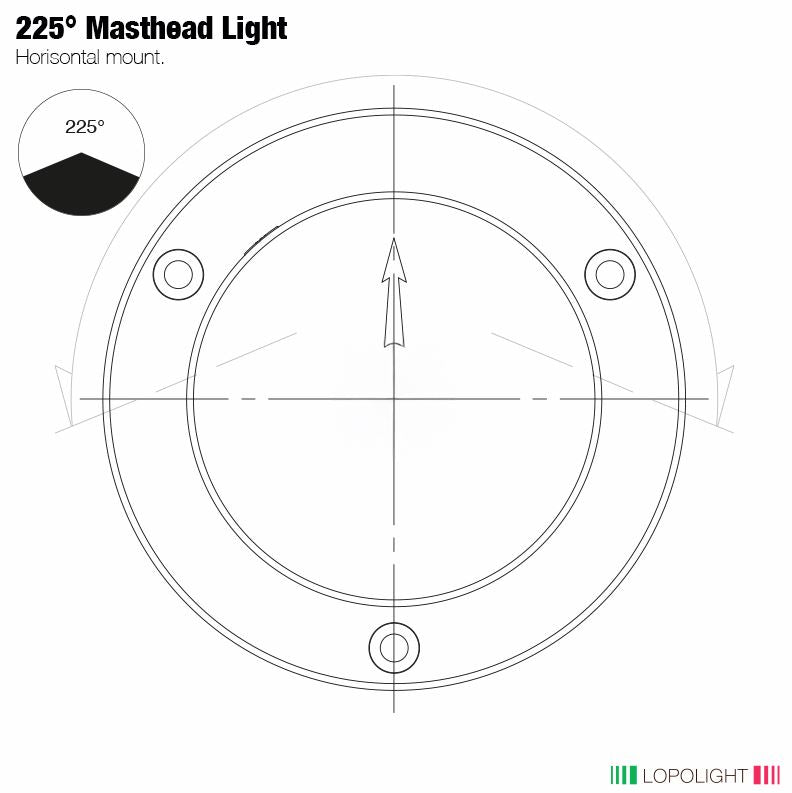

NAV LIGHT 5NM, MASTHEAD (BLK) HM, PRO DE-ICE

NAV LIGHT 5NM, MASTHEAD (BLK) HM, PRO DE-ICE

Item number:

200383

  • Manufacturer number: 300-036-PRO-I
  • Built-in De-icing function
    Horizontally mounted on 400-037 POM base (IP68)
    Cable direction side
    Incl.HDPE base plate
    Quality cable glands
    7-13mm (9/32"- 1/2") cable diameter

300-036-PRO-I

Specifications

Approved to: COLREG72, EN14744, IEC 60945, IACSE10, USCG, ABS, M.E.D., DNV,LR.

Operating temperature: -60°C to 55°C

Operating Voltage: 20-32VDC

Power draw (W): 7

Current consumption (mA @ 12VDC): 0

Current consumption (mA @ 24VDC): 290

Weight (Kg): 1,34

Light Color: White

Intensity: >52 cd

Visibility: 5NM

Mounting: Horizontal

Vessel size: 20-50m

Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurenthane.

IP rating: IP68

Connection: Plug connector

Min. feed wire gauge: 1,5mm² AW G18
