Specifications
Approved to: COLREG72, EN14744, IEC 60945, IACS, E10
USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
Operating temperature: -25°C to 55°
Operating Voltage: 20-32VDC
Power draw (W): 3
Current consumption (mA @ 12VDC): 0
Current consumption (mA @ 24VDC): 290
Weight (Kg): 1,75
Light Color: White
Intensity: >94cd
Visibility: 6NM

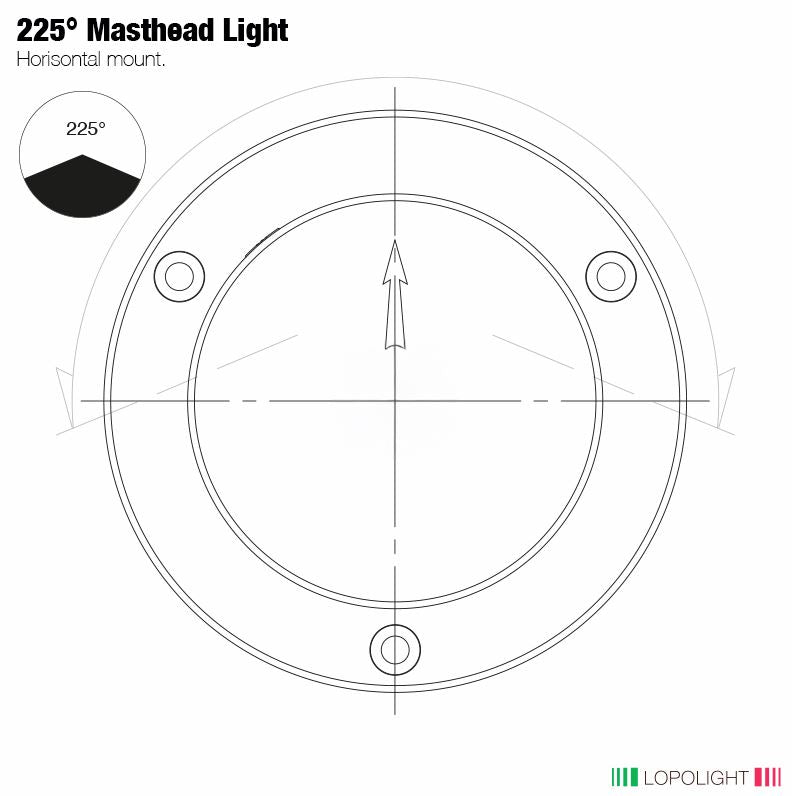

Mounting: Horizontal
Vessel size: Over 50m
Included In Package: 1 Navigation light, Installation guide.
Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane.
IP rating: IP68
Connection:Plug connector
Min. feed wire gauge: 0.5mm2 AWG22
