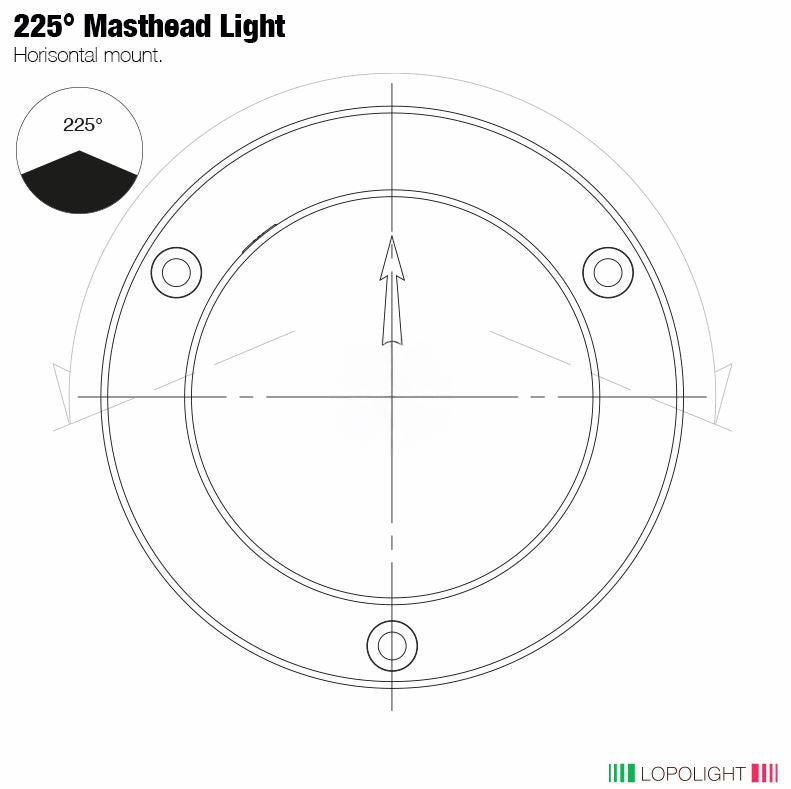

NAV LIGHT 6NM, WHITE MASTHEAD, HM, DOUBLE, BLACK

NAV LIGHT 6NM, WHITE MASTHEAD, HM, DOUBLE, BLACK

Item number:

SKU:201090

Logg inn for å se priser

Exc. VAT

  • Horizontally mounted on POM base (IP68)
    Cable direction side
    incl. HDPE base plate
    Quality cable glands
    7-13mm (9/32"- 1/2") cable diameter

300-138-PRO

Specifications

Approved to: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR

Operating temperature: -25°C to 55°C

Operating Voltage: 20-32VDC

Power draw (W): 13

Current consumption (mA @ 12VDC): 0

Current consumption (mA @ 24VDC): 580

Weight (Kg): 1,75 Kg

Light Color: White

Intensity: >94cd

Visibility: 6nm

Mounting: Horizontal

Vessel size: Over 50M


Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy,  Polyurethane

IP rating:  IP68

Connection: Plug connector

Min. feed wire gauge: 0.5mm2 AWG22
