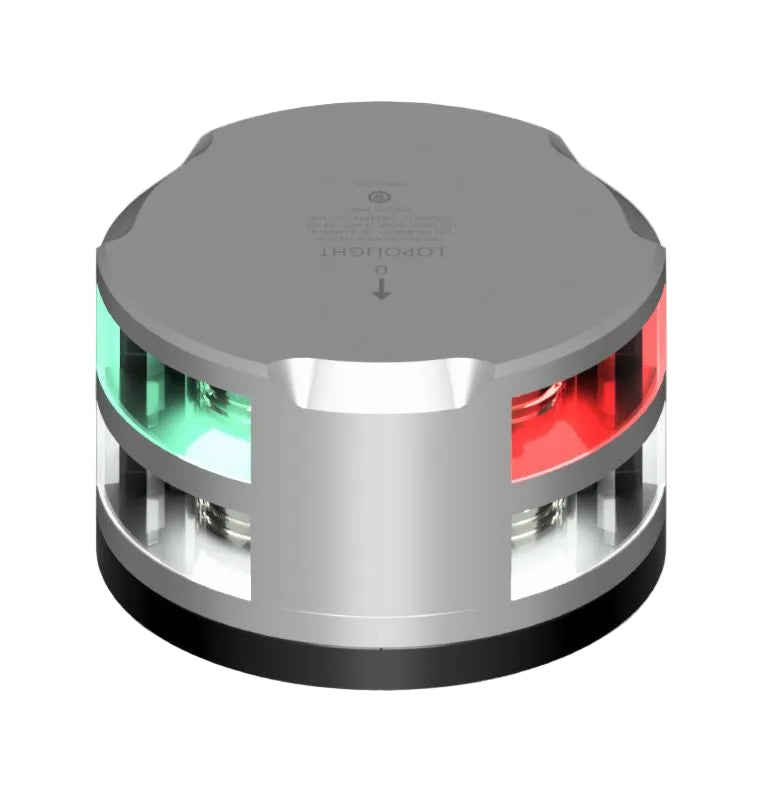

NAV LIGHT TRICOLOR W/ANCHOR, HM, W/FB BASE, 0.7M CABLE

Spesifications

Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR

Operating temperature: -25°C to 55°

Operating Voltage: 10-32VDC

Power draw (W): 2,6

Current consumption (mA @ 12VDC): 150

Current consumption (mA @ 24VDC): 81

Weight (Kg): 0.73

Light Color: Red, Green, White

Visibility: 1NM

Mounting: Horizontal

Vessel size: Under 12m

Included In Package: 1 Navigation light, precabled with 0,75 meter
shielded marine grade cable, Installation guide.

Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane.

IP rating: IP68

Connection: 0,7m cable

Min. feed wire gauge: 0.5mm2 AWG22
