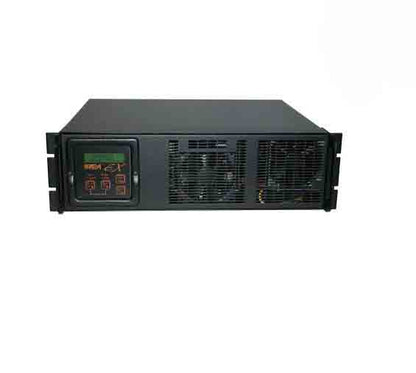

POWER SUPPLY EX-100D/1

POWER SUPPLY EX-100D/1

Item number:

200175

Logg inn for å se priser

Exc. VAT

This electronic power supply for single phase or double phase 230Vac 50/60Hz input, has been designed to feed from 1000W to 3000W short arc Xenon lamps, meeting all the requirement of lamp manufacturers to ensure correct operation, long life to the lamp, and high reliability.

1009165

Specifications

Technical data:

  • AC nominal voltage (V): 230
  • Input voltage range (V): 185 - 265
  • Frequency (Hz): 50/60
  • Frequency range (Hz): 47 - 63
  • Maximum input current (A): 22
  • Operating temperature (°C): - 5 to + 45
  • Degree of protection: IP20

Dimensions:

  • Lenghts (mm): 482
  • Width (mm): 469
  • Height (mm): 133
  • Net weight (kg): 23,42

Logistic data:

  • Item gross weight (kg): 25,46

Suggested igniters:

  • AS16040
  • ASC12040

Mounting position:

  • Horizontal
  • Vertical
  • Rack
View full details
