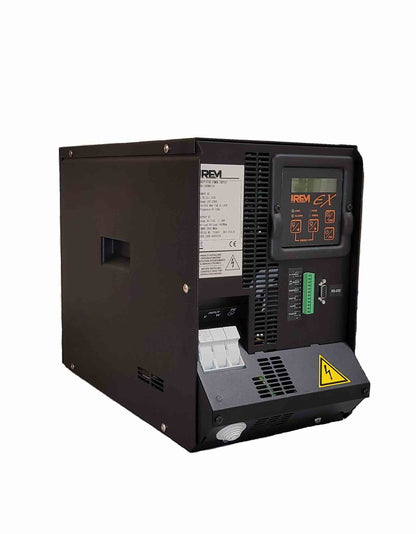

POWER SUPPLY EX - 100GM3 - US 3PH 208V

POWER SUPPLY EX - 100GM3 - US 3PH 208V

Item number:

200977

Logg inn for å se priser

Exc. VAT

This electronic power supply for three phase 208 Vac 50/60Hz input, has been designed to feed from 1000 to 3000W short arc Xenon lamps, meeting all the requirements of lamp manufacturers to ensure correct operation, long life to the lamp, and high reliability.

Specifications

Technical data:

  • AC nominal voltage (V): 208
  • Input voltage range (V): 187 - 230
  • Frequency (Hz): 50/60
  • Frequency range (Hz): 47 - 63
  • Maximum input current (A): 15
  • Operating temperature (°C): 0 to + 40
  • Degree of protection: IP20

Dimensions:

  • Lenghts (mm): 225
  • Width (mm): 465
  • Height (mm): 350
  • Net weight (kg): 19

Suggested igniters:

  • AS16040

Mounting position:

  • Horizontal
  • Vertical
