RLX D FL 160W100-277VAC MB60 750 2ADABK

RLX D FL 160W100-277VAC MB60 750 2ADABK

Item number:

201237

  • Manufacturer number: LN1001819

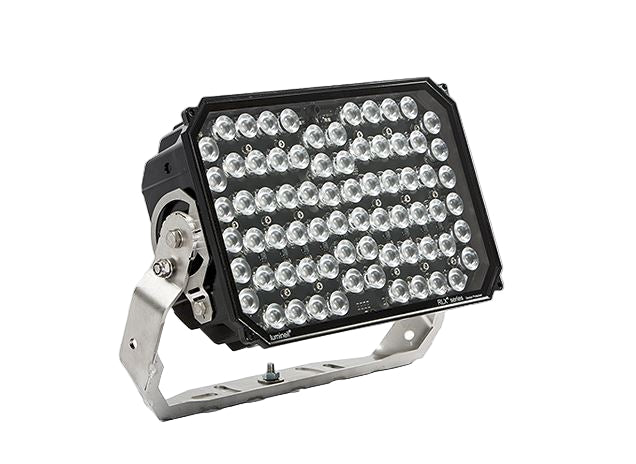

RLX™ D LED FLOODLIGHT takes over the place of the traditional High Pressure Sodium and Halogen floodlights and are suitable for multiple areas of use. The RLX™ D is a powerful floodlight with proven endurance for harsh environments.

LN1001819

Specifications

Specifications:

Technical Data:

  • Minimum ambient temperature (°): -40
  • Maximum ambient temperature (°): 55
  • IP Classification: 66/67

Light Technical Data:

  • Light source: LED
  • Lumen out (lm): 17,910
  • Lumen per Watt (lm/W): 112
  • Lamp colour temp (K): 5000
  • CRI Colour rendering index: >70

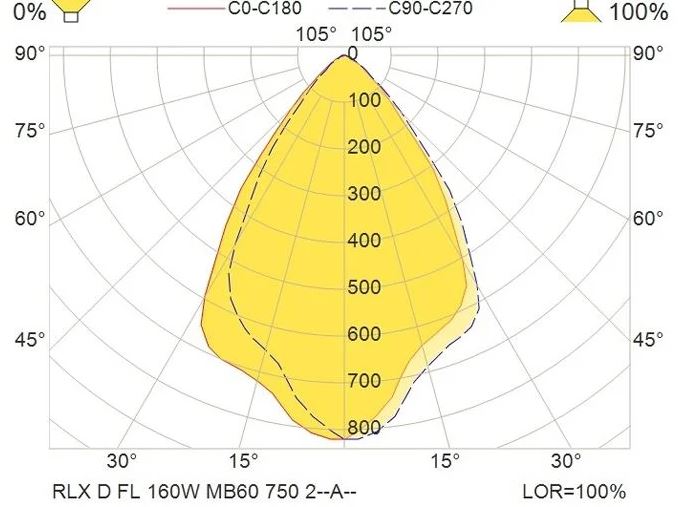

Optic:

  • Beam angle (°): 60
  • Optic: MB - Medium beam

Dimensions:

  • Lenght (mm): 449
  • Width (mm): 171
  • Height (mm): 329
  • Net weight (kg): 10.58
Downloads
Datasheet PDF
