RLX D FL 240W 100-277VACD Wide 750 3QEABK

RLX D FL 240W 100-277VACD Wide 750 3QEABK

Item number:

200941

  • Manufacturer number: LN1002654

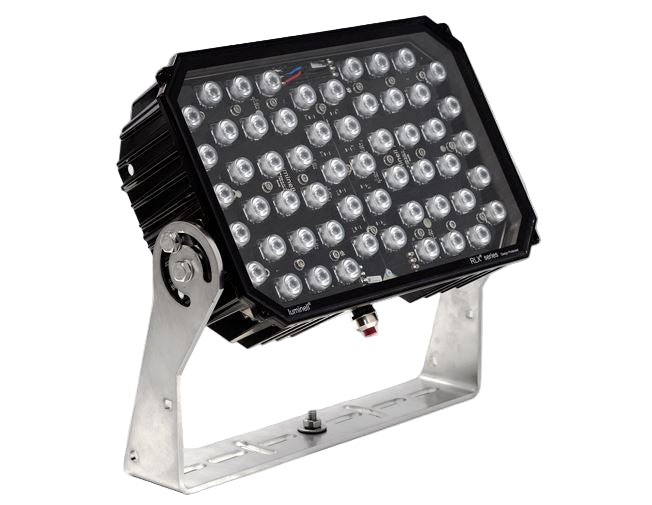

RLX™ D LED FLOODLIGHT takes over the place of the traditional High Pressure Sodium and Halogen floodlights and are suitable for multiple areas of use. The RLX™ D is a powerful floodlight with proven endurance for harsh environments.

LN1002654

Specifications

Specifications

Technical Data:

  • Minimum ambient temperature °C: -40
  • Maximum ambient temperature °C: 55
  • IP Classification: 66/67

Light Technical Data:

  • Light source: LED
  • Lumen out (lm): 24,946
  • Lumen per Watt(lm/W): 104
  • Lamp colour temperature (K): 5000
  • CRI Colour rendering index: > 70

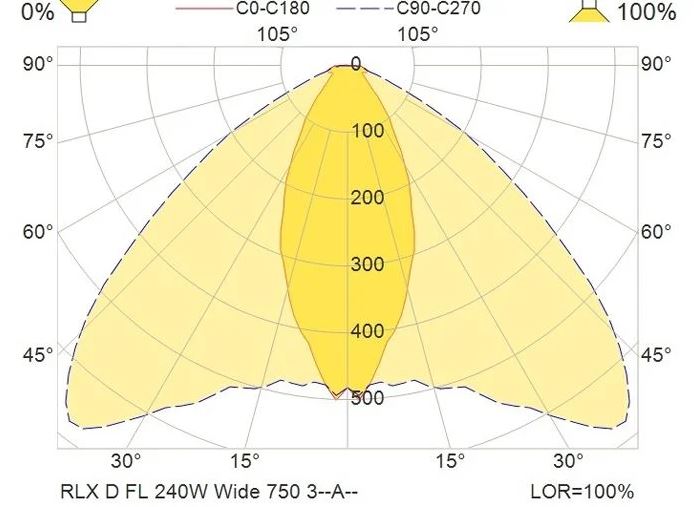

Optic:

  • WB - Wid beam
  • Beam angle (°): 110x45

Dimensions:

  • Lenght (mm): 444
  • Width (mm): 143
  • Height (mm): 397
  • Net weight (kg): 15,10
