SH 470 R50 230V 2000W BUS

SH 470 R50 230V 2000W BUS

Item number:

200848

Logg inn for å se priser

Exc. VAT

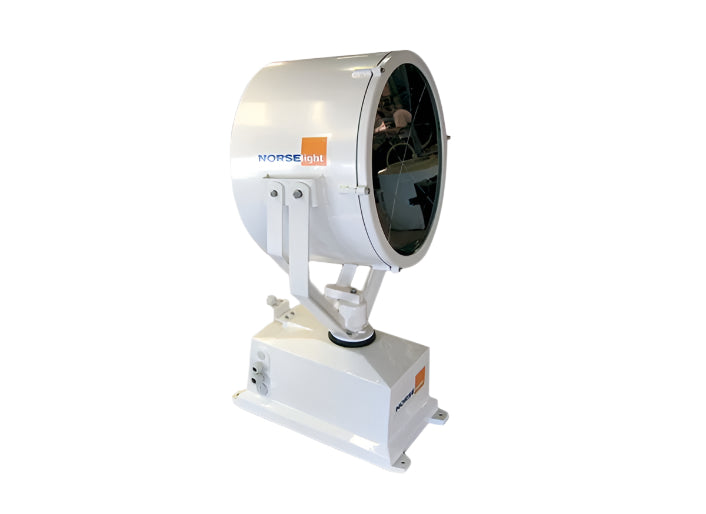

Halogen searchlight SH 470 is suitable for all kinds of ships. The Searchlights are especially equipped for vessels with high demand of light output or operating in harsh winter and ice conditions such as tugs, icebreakers, offshore supply vessels or ice-classed vessels. The Searchlight provide reliable lighting in a wide range of watt sizes and different voltages. They are also designed for arctic environments with temperatures down to -40 °C.

200107238

Specifications

Technical Data:

  • Minimum ambient temperature (°C): -40
  • Maximum ambient temperature (°C): 50
  • IP Classification: 56

Light Technical Data:

  • Light source: Halogen
  • Number of lamps: 1
  • Lumen value supplied light source (lm): 52,000
  • Light source included: Yes

Dimensions:

  • Lenght (mm): 360
  • Width (mm): 615
  • Height (mm): 1040
  • Diameter (mm): 525
  • Net weight (kg): 45,5

Downloads:

Technical manual
