SLX D SL 500W230VACD SB6 5-7K 3LAAWT

SLX D SL 500W230VACD SB6 5-7K 3LAAWT

Item number:

SKU:201333

  • Manufacturer number: LN1003785

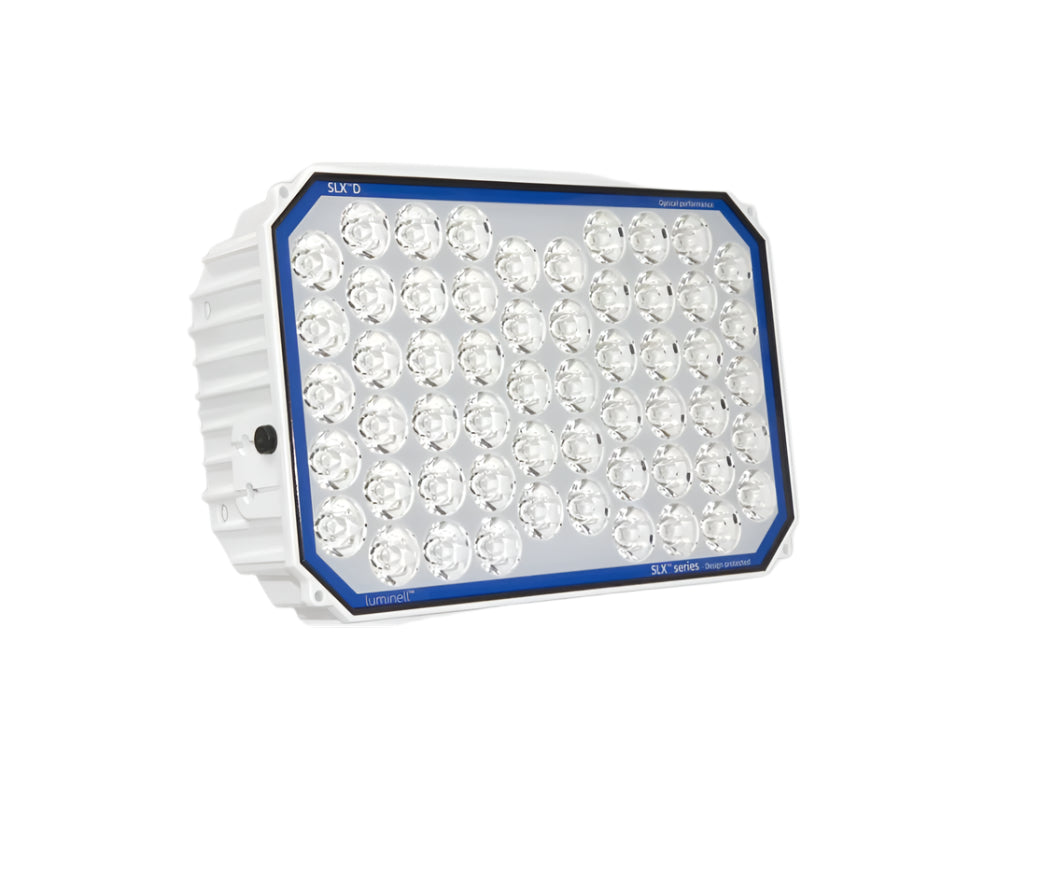

The SLX D 230VAC is designed to maximize the potential in the SLX platform and to replace and outperform Halogen searchlights. With no need for external drivers, it’s a plug and play light with incredible light performance and longevity in the harshest environments.

The SLX D is delivered without bracket. Please see Accessories for choosing the best bracket for you application.

LN1003785

Specifications

Specifications

Techinal Data:

  • Minimum ambient temperature (°C): -40
  • Maximum ambient temperature (°C): 55
  • IP Classification: 66/67

Light Technical Data:

  • Light source: LED
  • Lumen out (lm): 38.930
  • Lumen per Watt (lm/W): 71
  • Lamp colour temp (K): 6000
  • CRI Colour vendering index: >80
  • Candela output (cd): 1674368
  • Watt (W): 500

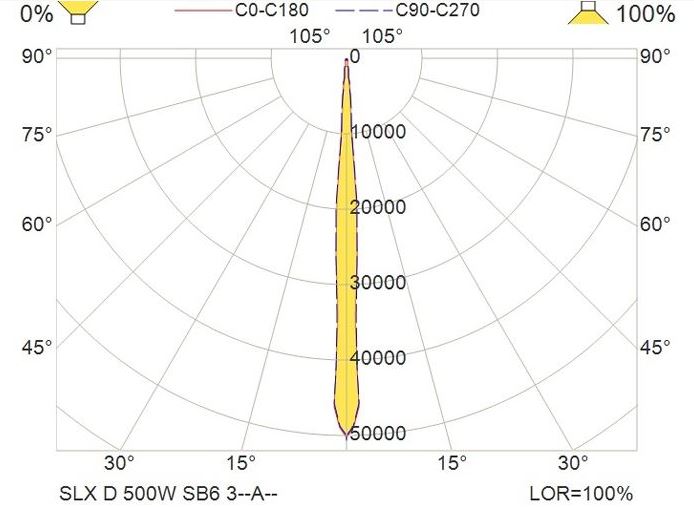

Optic

  • Output angle (°): 6
  • Optic: SB - Spot beam

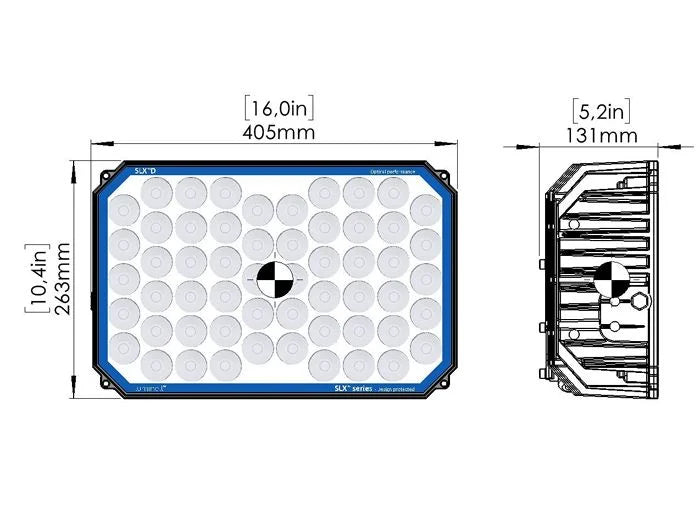

Dimensions:

  • Lenght (mm): 405
  • Width (mm): 131
  • Height (mm): 263
